Flexible LED module
360 view angle
Model(mm): P2，P2.5，P4 ，P6 ，P10
Size（m）: Support customization

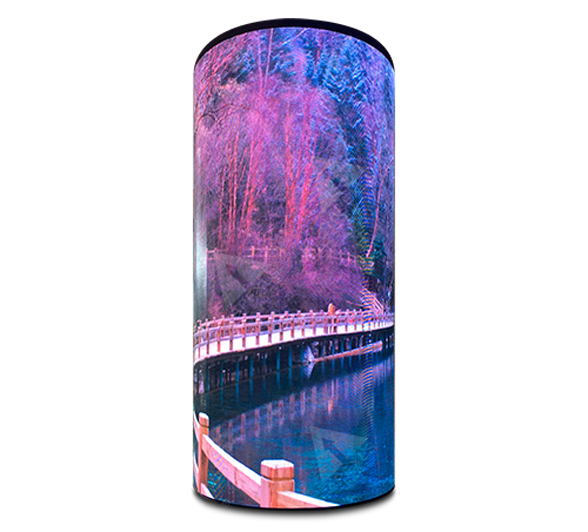

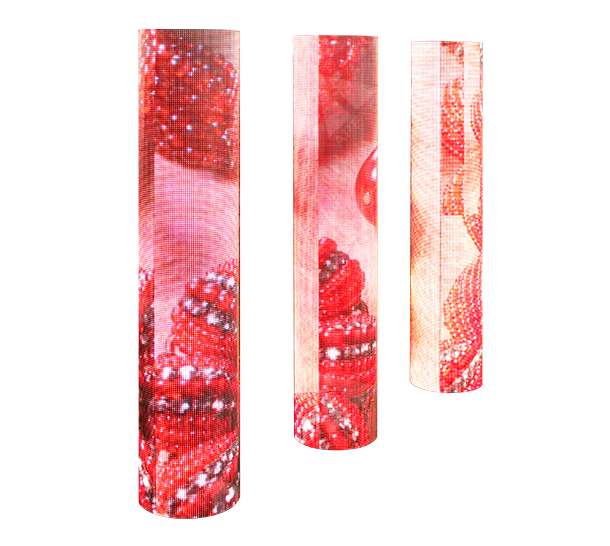

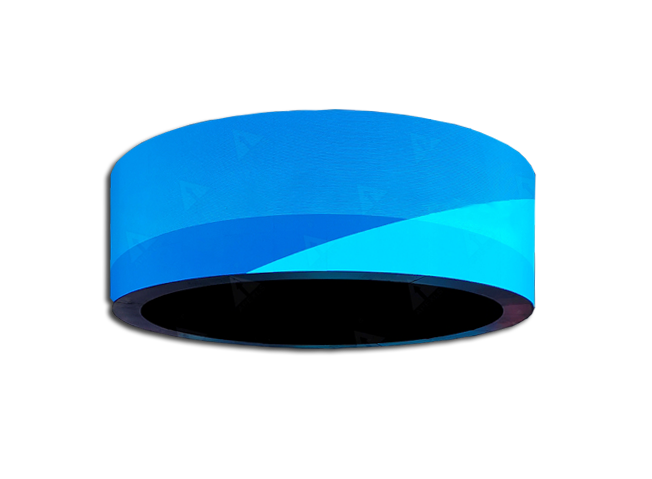

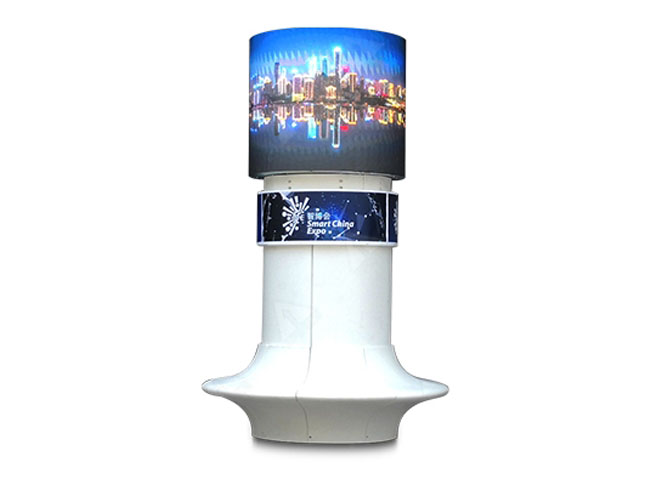

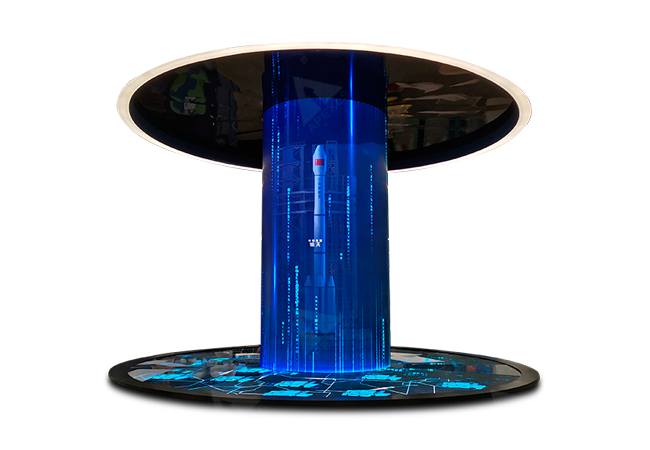

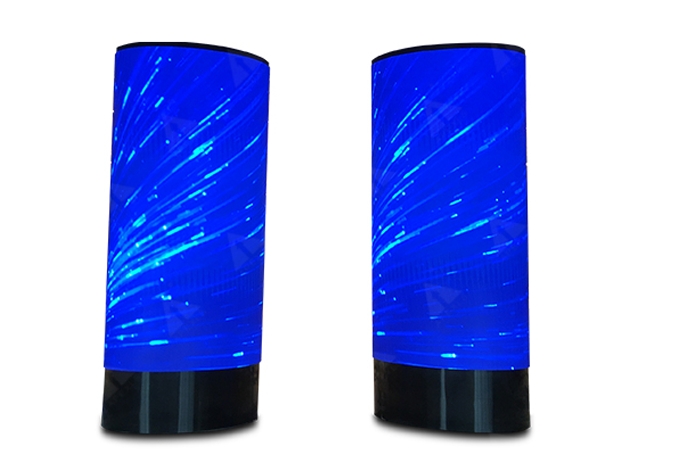

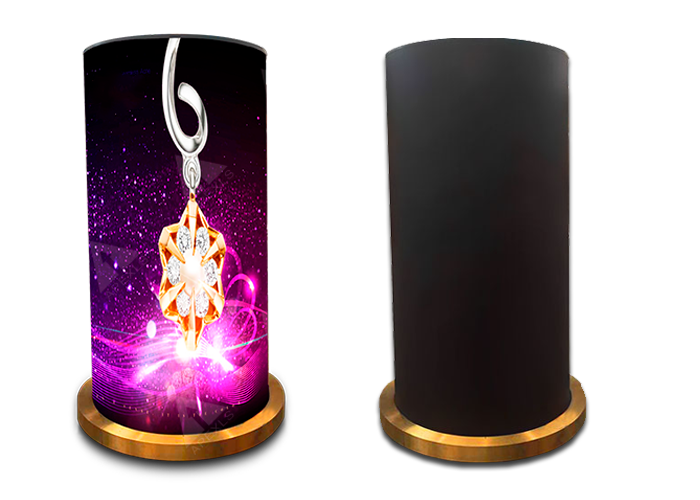

The Apexls cylindrical LED display is crafted with a unique curved structure, delivering an eye-catching visual experience that standard flat screens cannot achieve. Its special shape makes it ideal for B2B applications in exhibitions, museums, and commercial spaces.
This cylindrical LED display is widely used in hotels, shopping malls, concerts, stadiums, and sightseeing areas. With high brightness and excellent visibility, it ensures your content stands out in both indoor and outdoor environments, even under strong lighting.
Apexls offers customized cylindrical LED display solutions tailored to meet your specific project requirements. From design consultation to engineering support, our expert team ensures every detail aligns with your business goals, delivering both functionality and aesthetics.
Featuring seamless splicing and a smooth surface, the cylindrical LED display guarantees clear and vivid visuals. The splicing error between modules is controlled within ±0.1mm, ensuring a perfect round structure for immersive branding and advertising.
The cylindrical led display has a 360-degree screen, which can expand the viewing range of viewers in different directions. The led cylinder offers a unique and captivating way to exhibit your content.
With the high gray and high refresh rate design, the led cylinder screen will display the image without any delay or dragging phenomenon.
| KC Series Cylindrical Led Display | |||||
| Model | P2 | P2.5 | P4 | P6 | P10 |
| Pixel Pitch(mm) | 2 | 2.5 | 4 | 6 | 10 |
| LED Type | SMD1515 | SMD2121 | SMD12121 | SMD2121 | SMD3528 |
| Pixel Density(dots/㎡) | 250000 | 160000 | 62500 | 27777 | 10000 |
| Viewing Distance(m) | 2 | 2.5 | 4 | 6 | 10 |
| Brightness(cd/㎡) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Avg Power Consumption(W/㎡) | 230 | 230 | 300 | 300 | 112.5 |
| Max Power Consumption(W/㎡) | 500 | 500 | 600 | 600 | 250 |
| Refresh Rate(Hz) | 1,920-3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
