Super Energy-saving≥30%

Outdoor LED Display Panels

-KPH Series-

High Brightness≥6,000nits

Home > Products > Outdoor LED Display > KPH Series Outdoor LED Display

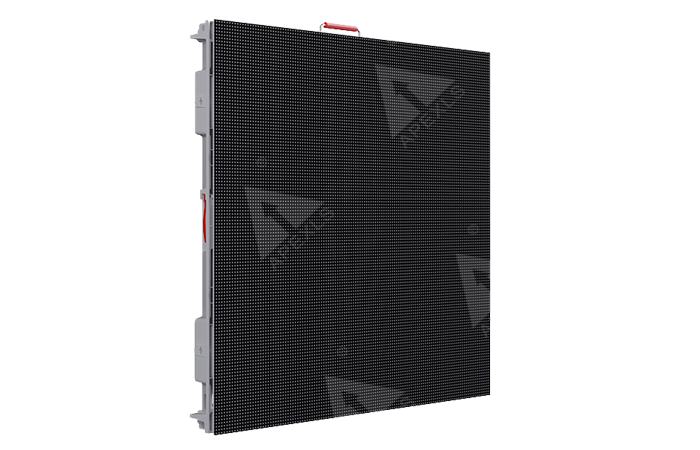

outdoor energy-saving led display pannel 960mm×960mm

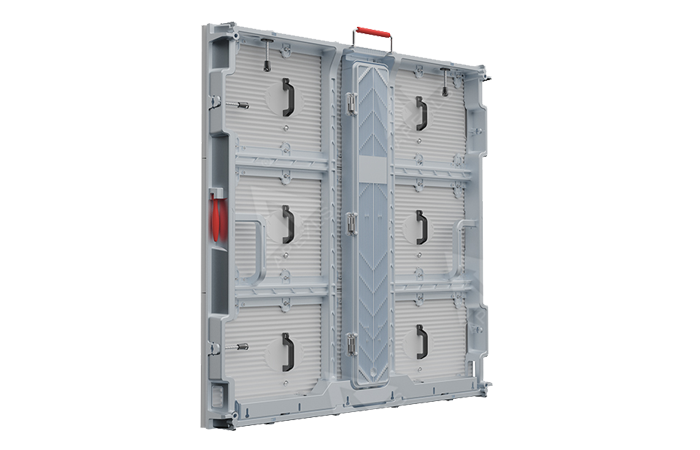

KPH outdoor led display pannel 960mm×960mm

Model(mm): P4，P6.67，P8，P10

Cabinet Size(mm): 960×960×90mm

Outdoor LED Display Panels

The Outdoor KPH Series Dynamic Energy-saving High brightness LED display realizes ultra-slim & light-weight, super-bright but energy-saving, fast & seamless installation designs, brings vivid colors with excellent quality for the immersive entertainment &advertising industry.

Main Applications

Application: Outdoor billboard, Shopping mall, Commercial complex, Parking area, Theme park, Sports stadium , Playground, Entertainment venue facade, etc.

High Brightness for Outdoor Impact

Higher brightness & refresh rate & grayscale performance: 6000+nits brightness supports the display of gorgeous images under any lighting conditions without being restricted by the environment.

Super Energy-saving

Use “dynamic” allocation of precise driving voltages for red, green, and blue, allowing the red tube to obtain 2.8V and the blue and green tubes to obtain 3.8V. It adopts dual voltage output. Compared with other 5V inputs, the power consumption is significantly reduced by 30%.

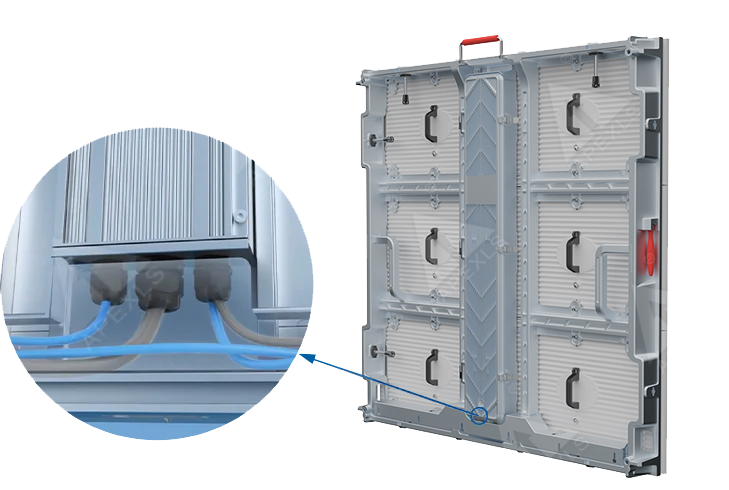

Exquisite Appearance

Standardized cabinet, excellent processing technology, simple & beautiful, bottom wire trough design to prevent wires from being damaged due to long-term exposure.

Cabinet thickness: 90mm, Cabinet size: 960x960mm, Cabinet weight 27kg/pc.

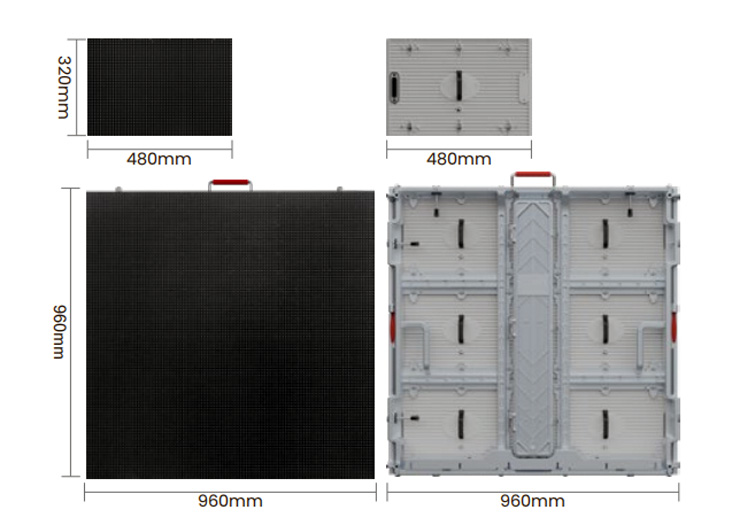

Ultra light and ultra-thin

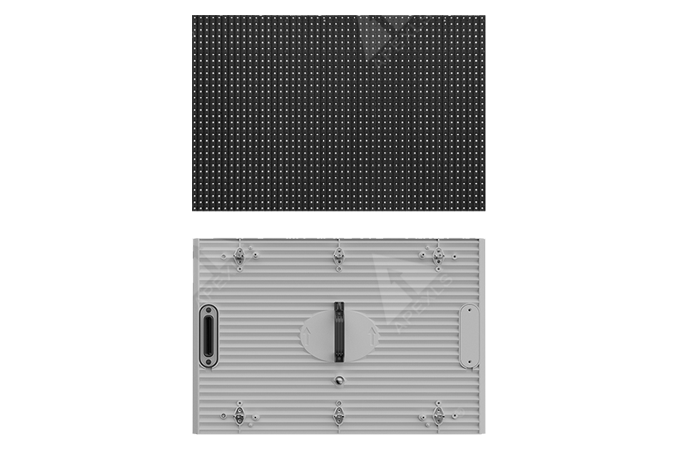

Model size: 480×320mm；

Cabinet size: 960x960mm；

Cabinet thickness: 90mm；

Cabinet weight 27kg/pc.

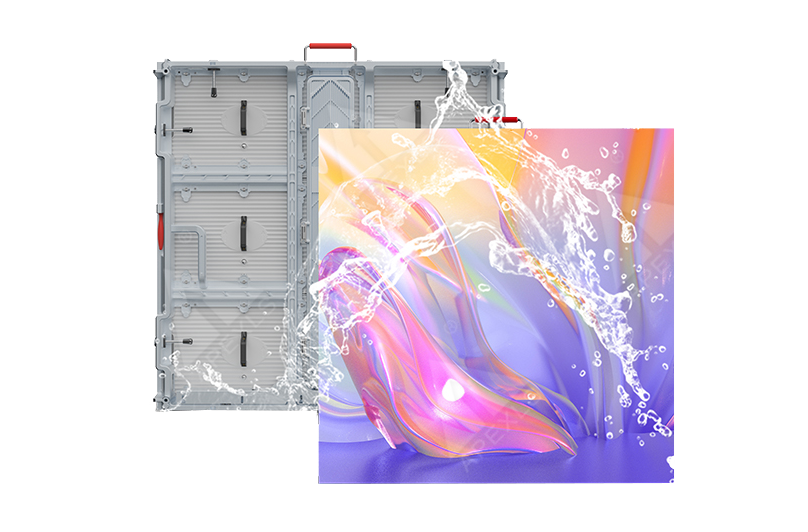

Superior Protection and Durability

Plasic shell module, die-casting fully enclosed power box, double-layer waterproof pin header rubber ring,The IP65+ waterproof design and Plasic shell housing guarantee full resistance against rain, dust, and corrosion. With 5VB fire protection grade and EMC-Class B certification, these panels perform reliably in harsh outdoor environments.

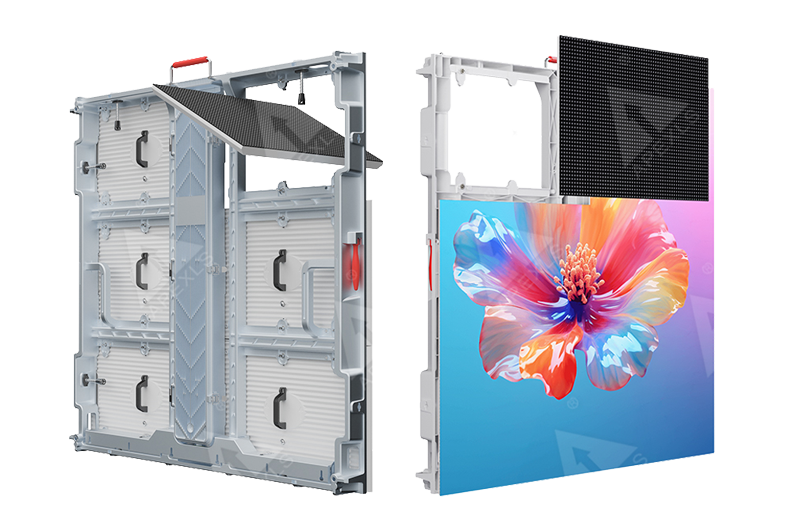

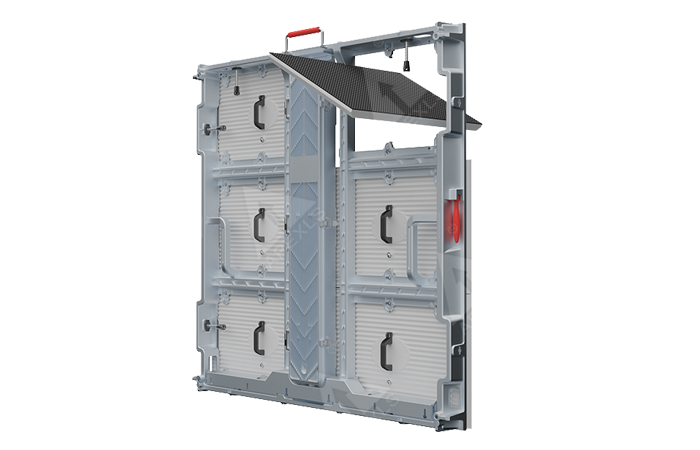

Front and Rear Maintenance

Both Modules & PSU’s Front-Rear service design can meet any project-site needs, and save some extra maintenance costs if any.

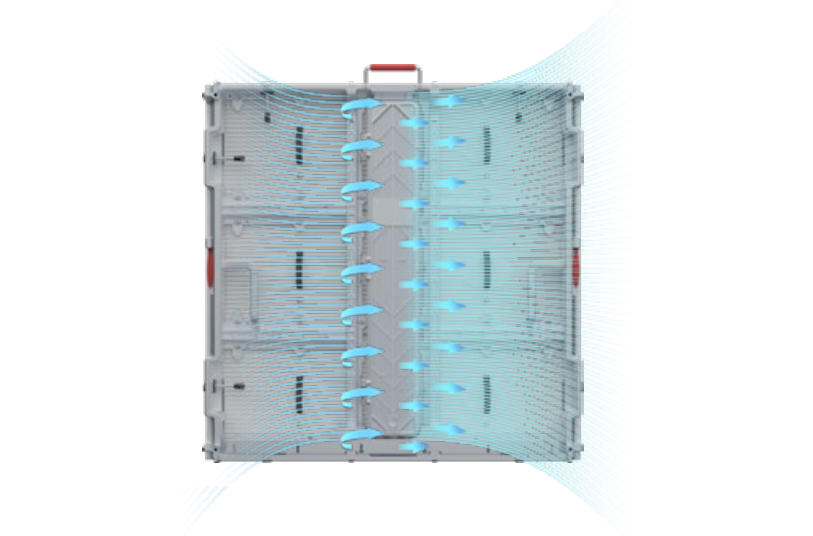

Efficient Heat Dissipation System

The energy-saving outdoor LED display panels use a die-cast aluminum structure that accelerates heat dissipation. Thermal conductive silicone and close-contact power integration eliminate the need for external air conditioning. The result is a cool, stable system that extends panel lifespan while reducing energy use.

Curved Splicing for Creative Design

The KPH Series outdoor LED display panels support curved splicing, Curved splicing that fits the contour of the building can effectively reduce space waste and reduce installation costs. This design is not only beautiful, but also makes full use of space.

Parameters

Model	P4	P6.67	P8	P10
Pixel Pitch(mm)	4	6.67	8	10
Pixel Composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD1820	SMD1820	SMD1820	SMD2727
Pixel Density(dots/m²)	62,500	22,500	15,625	10,000
Module Size(mm)	480×320	480×320	480×320	480×320
Module Resolution(dots)	120×80	72×48	60×40	48×32
Cabinet Size(mm)	960x960x90	960x960x90	960x960x90	960x960x90
Cabinet Resolution(dots)	240×240	144×144	120×120	96×96
Cabinet Material	Die-casting aluminum
Cabinet weight(kg)	27	27	27	27
Brightness(cd/m²)	5,500	6,000	6,000	6,000
Power Avg.(W/m²)	165	158	158	158
Power Max.(W/m²)	620	600	600	600
Scan Rate	1/10	1/4	1/3	1/2
Refresh Rate(Hz)	3840~7,680
Gray Scale(bit)	14~16
IP Grade	Front: IP65 & Rear: IP54
Installation/Maintenance	Front & Rear
Certification	CE, ETL, FCC, RoHS
