Screen sound transmission
Magnetic suction module

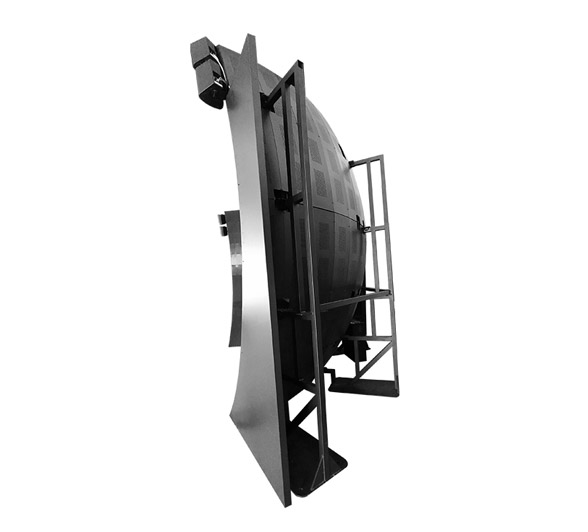

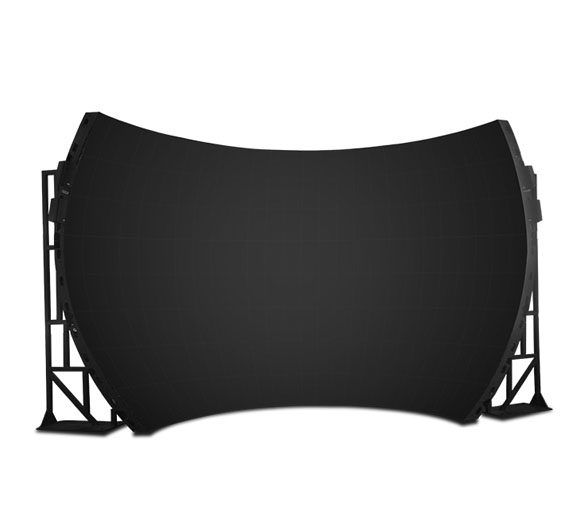

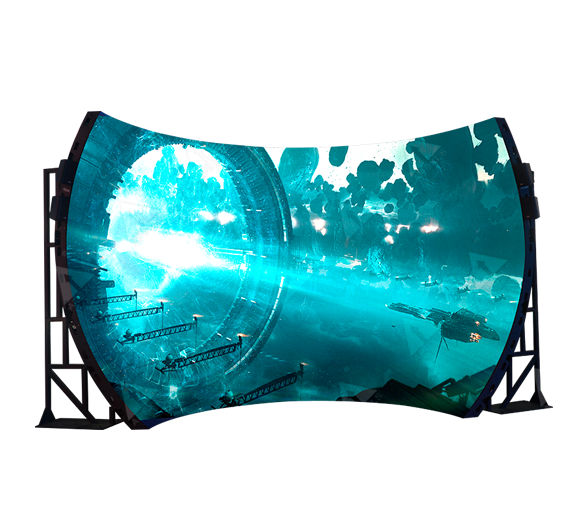

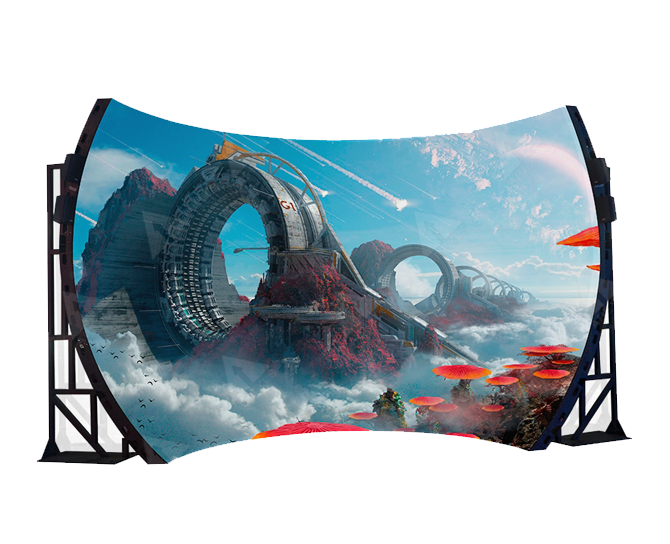

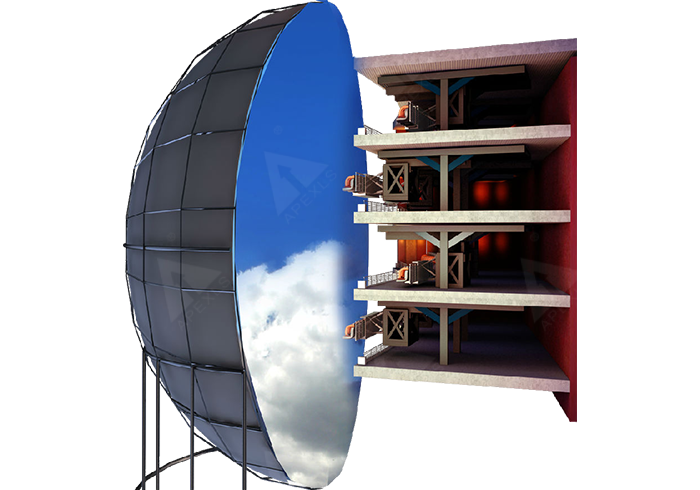

LED dome screen, integrating with 4D led core technology, it is a totally new form of theater and interaction. Apexls’ research and development team broke through many technical difficulties to make the viewing angle larger, the viewing effect clearer, and reduce noise and echo at the best. The impressive and immersive setting will give the viewer a sense of surrounded visual enjoyment.
Museum, Science and Technology Museum, Planning Museum, Planetarium, Children’s Palace, Exhibition Halls, Theme Activities, Military Virtual Simulation, School Virtual Teaching and Industrial Virtual Simulation.
With the wide viewing angle, when spectators stand within the led dome, they are completely enveloped in the action, story, or experiences within the environment. The led dome provides a visually stunning, and truly immersive experience where boundaries and limitations dissolve.
With the ultra-high definition picture and realistic sound, audience can feel an immersive effect when approaches the screen to watch the film.
Configuration, size and pixel pitch can be customized according to the customer’s budget and needs.
Model | P1.45 | P1.875 | P2 | P4 |
Pixel Pitch(mm) | 1.45 | 1.875 | 2 | 4 |
Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
Pixel Density(dots/m²) | 475, 624 | 284,444 | 250,000 | 62500 |
Scanning Method | 1/35 | 1/32 | 1/32 | 1/16 |
Brightness(cd/m²) | 300 | 800-1000 | 800-1000 | 800 |
Power Avg.(W/m²) | 140 | 150-200 | 150-200 | 150-200 |
Power Max.(W/m²) | 300 | 600 | 600 | 600 |
Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
Gray Scale(bit) | 16 | 12-16 | 12-16 | 12-16 |
Arc Center Angle | Customized according to needs | |||
LED Cabinet Weight (kg/pc) | 5 | 40 | 40 | 50 |
Gross weight(kg/m²) | ≤60 | |||
Continuous Use Time(hrs) | >72 | |||
Life Time (hrs) | >10,000 | |||
Discrete Out of Control Point(%) | <0.01 |
0
· Product: P6
· Screen Size: 73 sqm
· Location: Chengdu, China
0
· Product: P10
· Screen Size: 19m long, 8.75m high, 35cm thick
· Location: Beijing, China
0
· Product: P4
· Screen Size: 5 sqm
· Location: November 2019
