Size Customization
Visual art
Model(mm): P1.5，P2，P2.5，P4 ，P6

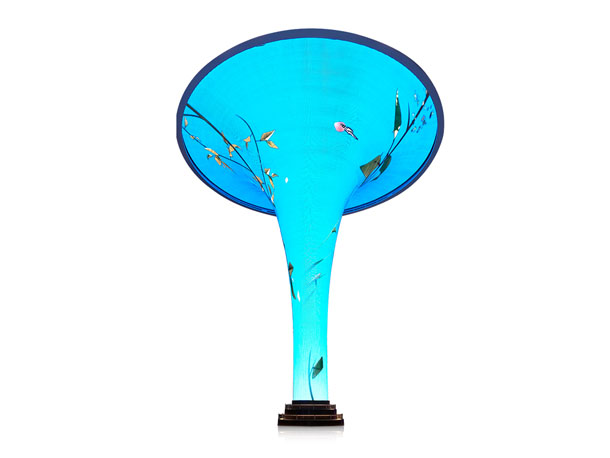

The Apexls trumpet LED display is designed with patented modules to seamlessly integrate with architectural columns. Its trumpet-shaped structure enhances artistic appeal while delivering vivid visuals and immersive sound effects. Audiences standing beneath experience a unique and astonishing atmosphere.

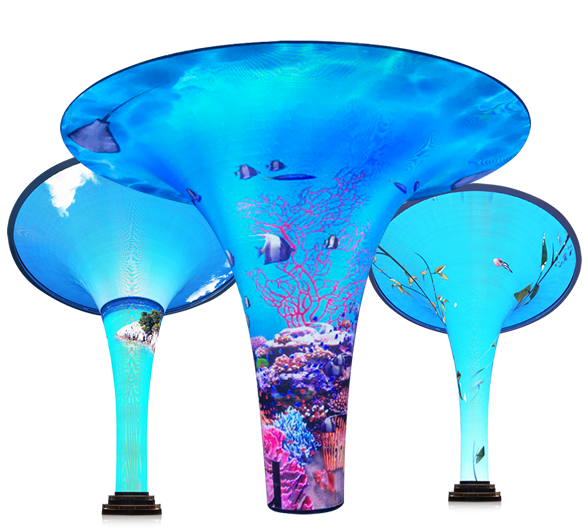

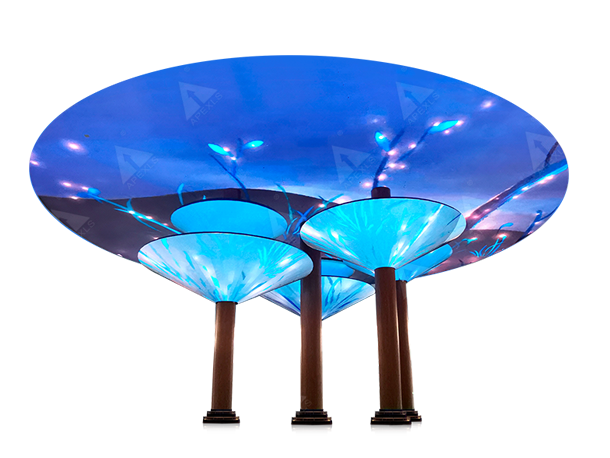

This trumpet LED display is widely used in railway stations, airports, shopping malls, concerts, exhibition halls, science centers, and museums. By combining high-tech design with flexible installation, it creates an eye-catching centerpiece for large-scale venues, making it ideal for both branding and event promotion.

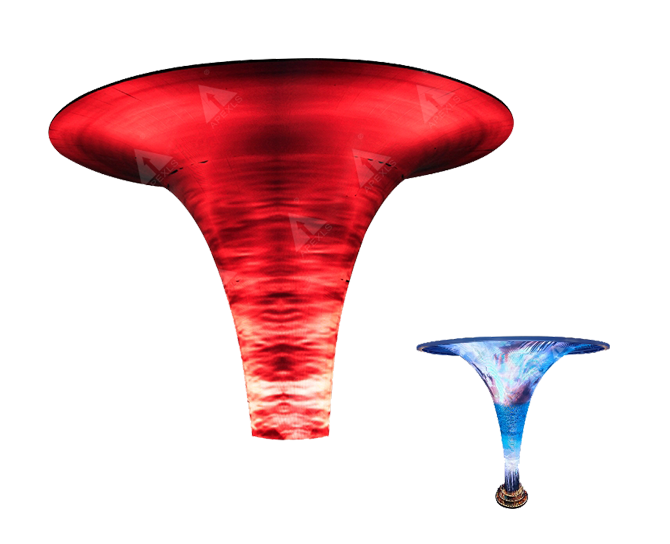

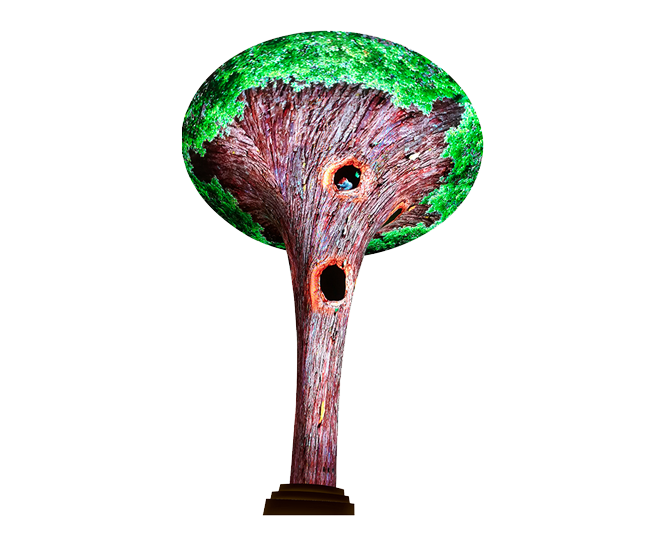

Built with small and slightly flexible modular units, the trumpet LED display can be customized into cylindrical, spherical, waveform, or S-shaped structures. This versatility allows Apexls to deliver creative LED display solutions tailored to customer needs, ensuring maximum design freedom and innovation.
The trumpet LED display features an ultra-thin panel with a hollow structure, making it lightweight yet durable. Its sleek design simplifies installation and ensures aesthetic integration with different environments. This modern structure guarantees stability, efficiency, and long-term reliability for professional projects.
With the appearance of decorative effect, dynamic and visual impact, the led trumpet screen becomes a kind of novel advertising form, and is very ornamental. High gray scale and refresh rate make the display show super clear images without ghosting phenomenon.
Adopted distributed scanning technology and modular design, the led trumpet screen has high reliability and stability.
| KC Series Trumpet LED Display | |||||
| Model | P1.5 | P2 | P2.5 | P4 | P6 |
| Pixel Pitch(mm) | 1.5 | 2 | 2.5 | 4 | 6 |
| LED Type | SMD1212 | SMD1212 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density(dots/㎡) | 444443 | 250000 | 160000 | 62500 | 27777 |
| Scanning Method | 1/32 | 1/32 | 1/32 | 1/32 | 1/32 |
| Brightness(cd/㎡) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Avg Power Consumption(W/㎡) | 250-300 | 250-300 | 250-300 | 250-300 | 300 |
| Max Power Consumption(W/㎡) | ≤550 | ≤550 | ≤550 | ≤550 | ≤600 |
| Refresh Rate(Hz) | 960-5000 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
