Super Energy-saving

Outdoor LED Display Panels

-KAH Series-

High Brightness

Home > Products > Outdoor LED Display > KAH Series Outdoor LED Display

Model(mm): P4，P6.67，P8，P10

Cabinet Size(mm): 960×960×90mm

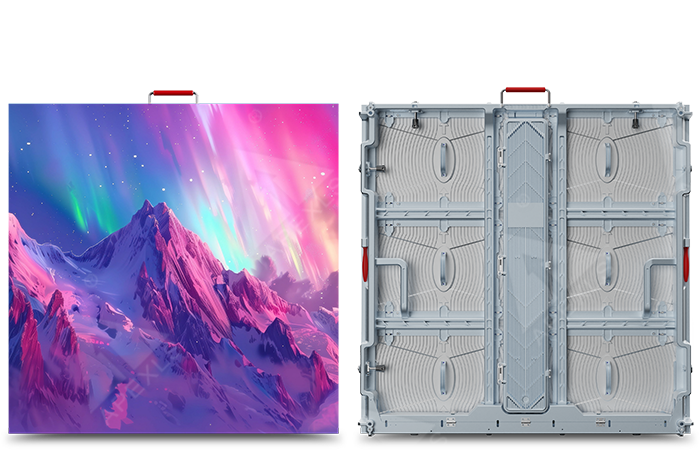

Outdoor LED Display Panels

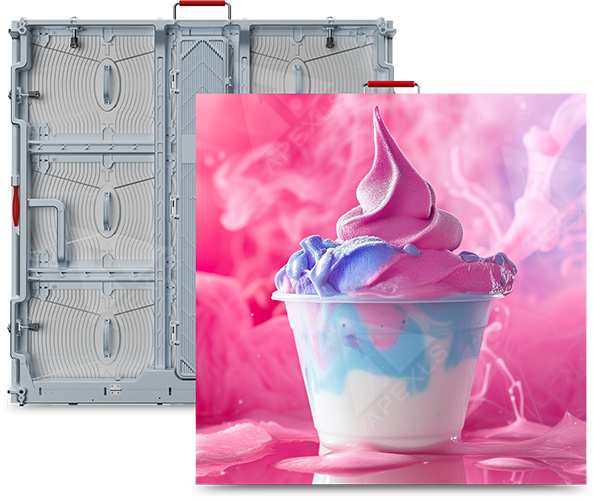

The Apexls KAH Series outdoor LED display panels deliver cutting-edge performance for large-scale advertising and entertainment spaces. Combining ultra-slim design, high brightness, and energy efficiency, this series ensures excellent visual quality even under direct sunlight. Perfect for billboards, shopping malls, sports stadiums, and outdoor venues, it provides durable reliability and vivid presentation for every viewing scenario.

Main Applications

Application: Outdoor billboard, Shopping mall, Commercial complex, Parking area, Theme park, Sports stadium , Playground, Entertainment venue facade, etc.

High Brightness for Outdoor Impact

These outdoor LED display panels achieve over 8000 nits brightness, maintaining superior image clarity and color depth in any lighting condition. With advanced grayscale and refresh rate performance, they deliver vibrant, lifelike visuals that attract attention day or night, ensuring your brand stands out in crowded commercial spaces.

Super Energy-saving

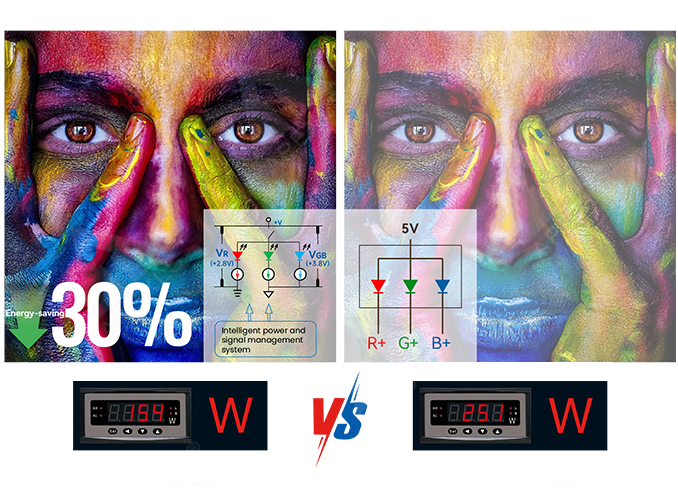

The KAH Series adopts dual-voltage output technology, significantly reducing power consumption by up to 30% compared with traditional 5V systems. Optimized LED voltage ranges—1.9-2.2V for red, 2.9-3.2V for green and blue—help achieve maximum brightness with minimal energy waste, making these panels a sustainable solution for modern outdoor advertising.

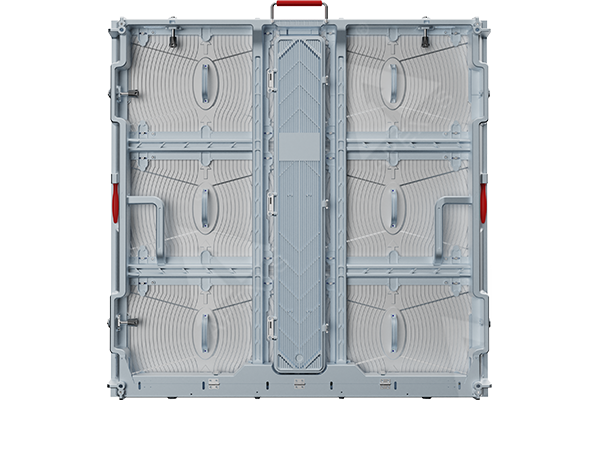

Exquisite Appearance

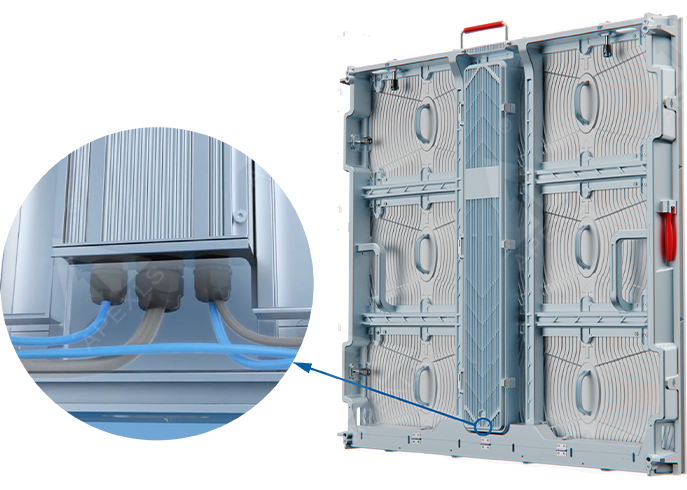

Standardized cabinet, excellent processing technology, simple & beautiful, bottom wire trough design to prevent wires from being damaged due to long-term exposure.

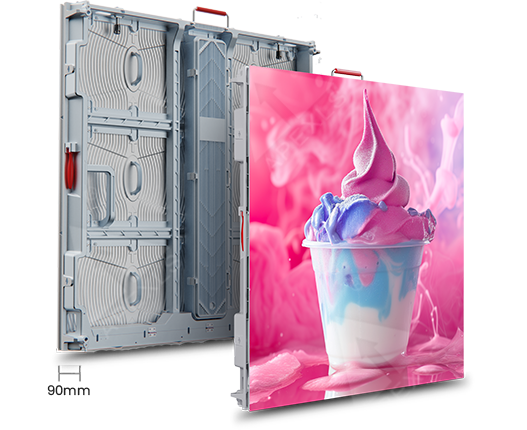

Ultra light and ultra-thin

Cabinet thickness: 90mm；

Cabinet size: 960x960mm；

Cabinet weight 27.5kg/pc.

Superior Protection and Durability

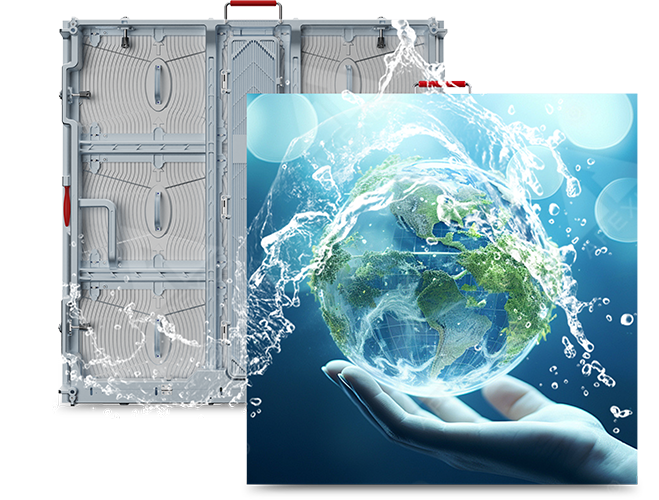

The IP65+ waterproof design and die-cast aluminum housing guarantee full resistance against rain, dust, and corrosion. With 5VB fire protection grade and EMC-Class B certification, these panels perform reliably in harsh outdoor environments. The fully enclosed module and power box ensure long-term operation with stable performance.

Flexible Front and Rear Maintenance

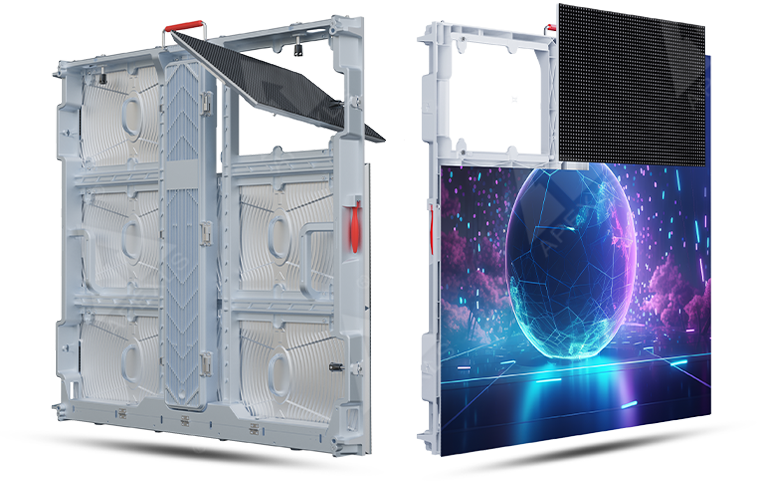

Designed for maximum serviceability, both modules and power units support front and rear maintenance, reducing downtime and operational costs. This feature allows easy access in tight installation spaces, making it ideal for high-traffic commercial and architectural LED display projects.

Efficient Heat Dissipation System

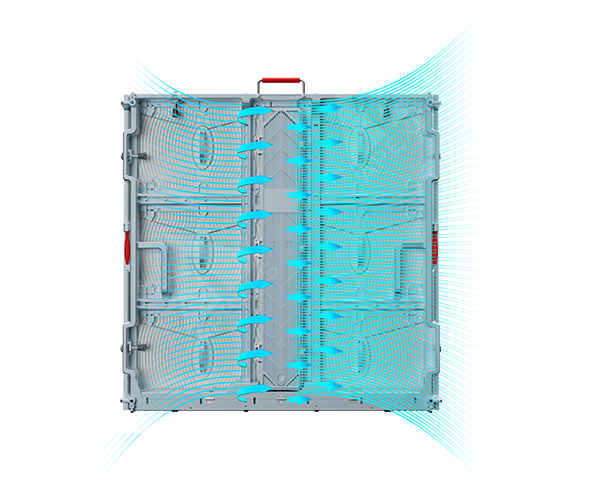

The energy-saving outdoor LED display panels use a die-cast aluminum structure that accelerates heat dissipation. Thermal conductive silicone and close-contact power integration eliminate the need for external air conditioning. The result is a cool, stable system that extends panel lifespan while reducing energy use.

Curved Splicing for Creative Design

The KAH Series outdoor LED display panels support curved splicing, allowing creative installations that follow the building’s contours. This flexible approach reduces space waste and installation costs while enhancing architectural aesthetics. It’s a perfect combination of visual creativity and engineering precision.

Parameters

Model	P4	P6.67	P8	P10
Pixel Pitch(mm)	4	6.67	8	10
Pixel Composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD1515	SMD1820	SMD1820	SMD2727
Pixel Density(dots/m²)	62,500	22,500	15,625	10,000

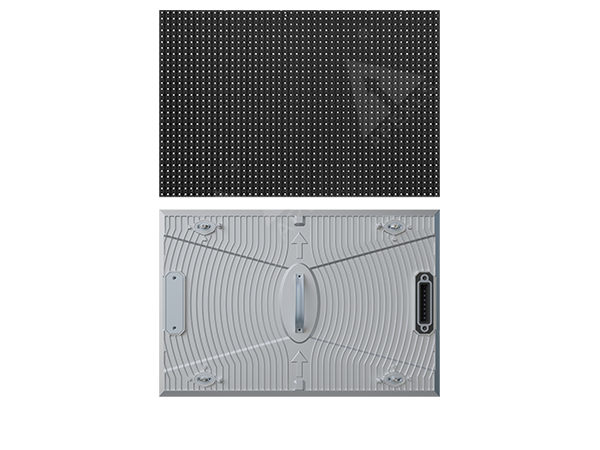

Module Size(mm)	480×320	480×320	480×320	480×320
Module Resolution(dots)	120×80	72×48	60×40	48×32
Cabinet Size(mm)	960x960x90	960x960x90	960x960x90	960x960x90
Cabinet Resolution(dots)	240×240	144×144	120×120	96×96
Cabinet Material	Die-casting aluminum
Cabinet weight(kg)	27.5	27.5	27.5	27.5
Brightness(cd/m²)	7,000	8,000	8,000	8,000
Power Avg.(W/m²)	180	140	138	135
Power Max.(W/m²)	595	595	595	595
Scan Rate	1/10	1/4	1/3	1/2
Refresh Rate(Hz)	3,840
Gray Scale(bit)	14-16
IP Grade	Front: IP65 & Rear: IP54
Installation/Maintenance	Front&Rear
Certification	CE, ETL, FCC, RoHS
