Intelligent split screen
Ultra-light, Ultra-thin
Model(mm): P1.25, P1.53, P1.86, P2, P2.5

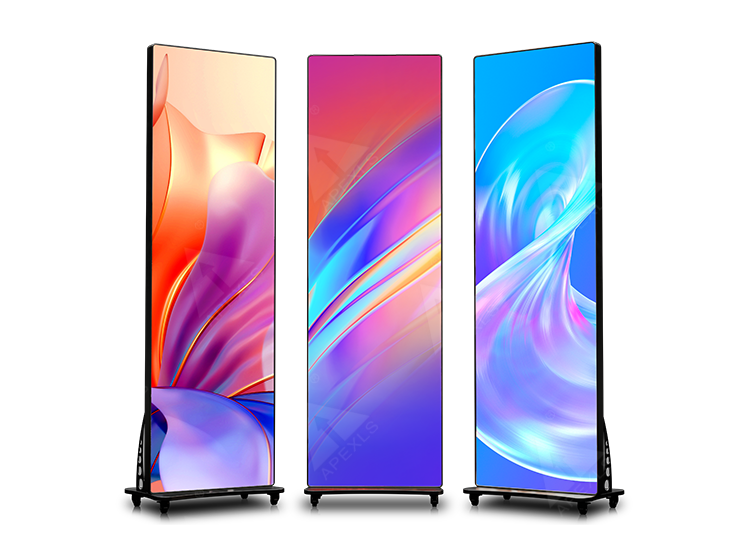

A poster LED display is a high-definition advertising solution designed to deliver vibrant videos, text, and images. With its slim design and easy setup, this display is widely used in commercial spaces to attract attention, enhance brand image, and effectively deliver messages.
Poster LED displays are highly versatile, commonly installed in airports, stations, hospitals, banks, theaters, supermarkets, restaurants, hotels, and shopping malls. They provide businesses with an effective tool to engage audiences and strengthen brand communication in busy environments.

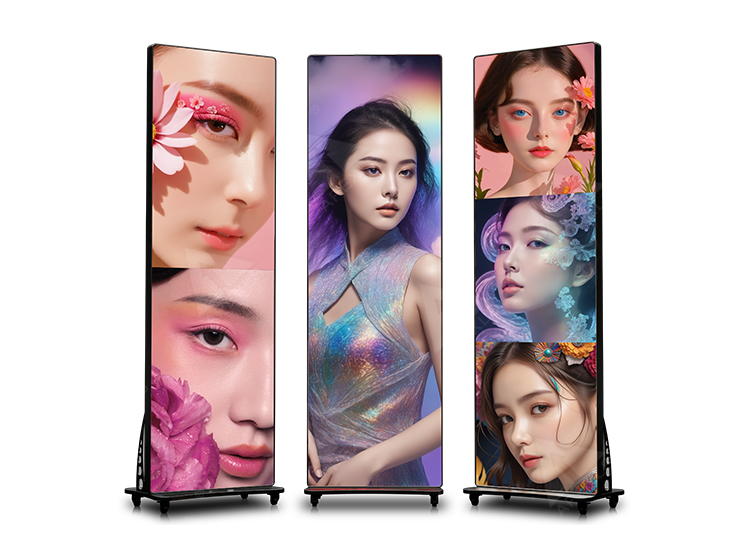

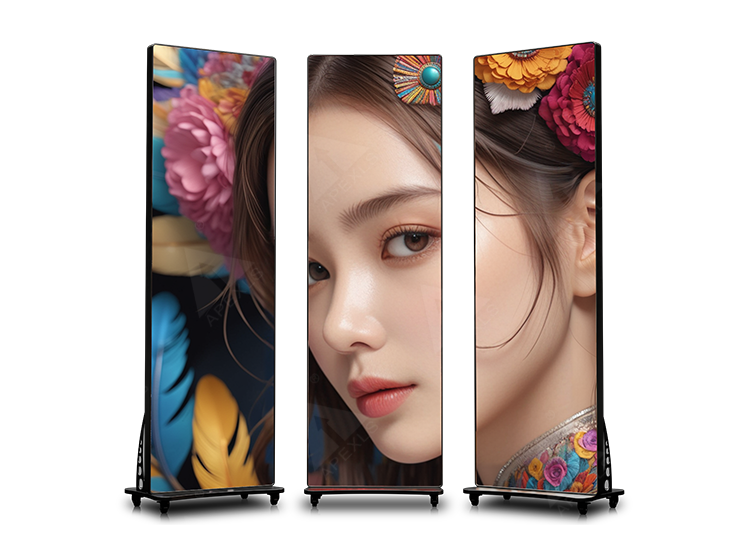

This poster LED display supports intelligent split-screen functions, allowing simultaneous playback of different content across multiple screens. With high brightness, vivid colors, and strong visibility, it ensures that advertising content remains eye-catching even in well-lit environments.

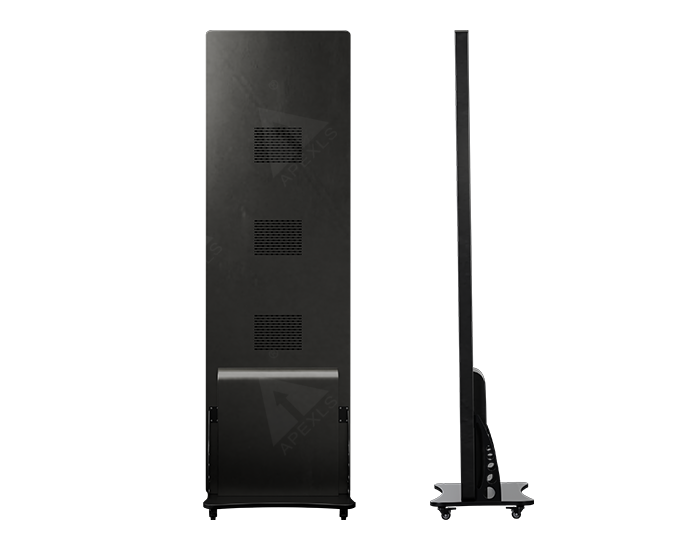

Cabinet Details， Maintenance Method
Ultra-light, Ultra-thin, easy movable. Easy opeartion, play & plug

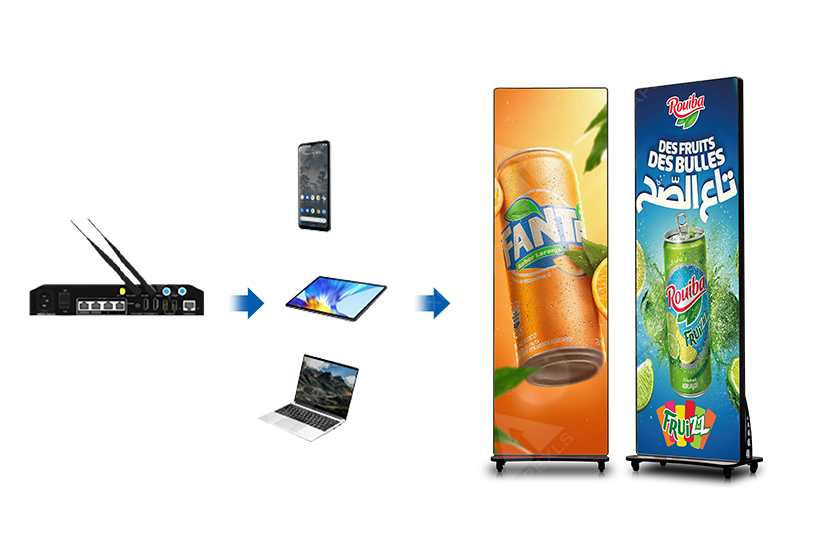

Smart APP wifi control,multiple-unit casecade, WIFI/USB/HDMI

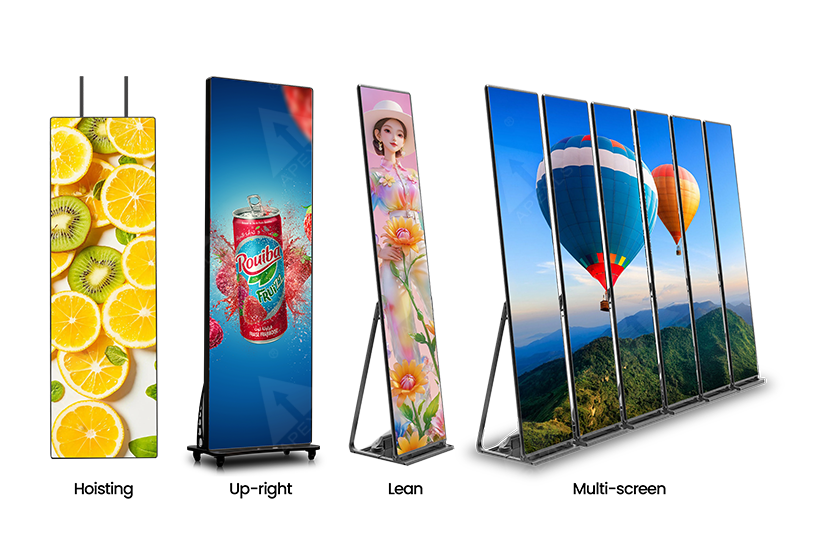

Support hanging , wall-mounted, free-standing.
| Model | P1.53 | P2 | P2.5 |
| Pixel Pitch(mm) | 1.538 | 2 | 2.5 |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1212 | SMD1515 | SMD2020 |
| Pixel Density(dots/m²) | 422,500 | 250,000 | 160,000 |
| Module Size(mm) | 320×160 | 320×160 | 320×160 |
| Module Resolution(dots) | 208×104 | 160×80 | 128×64 |
| Cabinet Size(mm) | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Resolution(dots) | 416×1248 | 320×960 | 256×768 |
| Weight(kg) | 49 | 49 | 49 |
| Brightness (cd/m²) | 600 | 800 | 800 |
| Gray Scale(bit) | 14 | 14 | 14 |
| Avg. Power (W/m²) | 230 | 230 | 230 |
| Max. Power (W/m²) | 680 | 680 | 680 |
| Drive Mode(S) | 1/52 | 1/40 | 1/32 |
| Refresh Rate(Hz) | 3840 | 3840 | 1920 |
| Environmental | Indoor | ||
| Support Input | HDMI, USB, mobile wifi, wireless 4G | ||

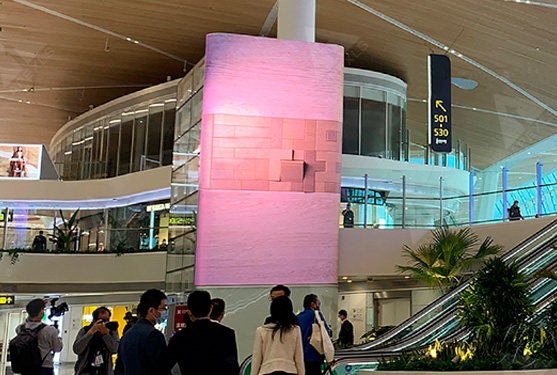

0
· Product: P2.5
· Screen Size: 298 sqm
· Location: Shenzhen, China
0
· Product: P4
· Screen Size: 730 sqm
· Location: Foshan, China
0
· Product: P3/P4
· Screen Size: 112 sqm
· Location: Guangdong, China
