Cabinet Material：
Aluminum / Iron
Color image
Excellent quality
Model(mm): P2.976，P3.91，P4.81 ，P5.2，P6.67，P8，P10
Cabinet Size(mm): 1000×1000，960×960
Apexls outdoor LED Display KPS series are widely used in outdoor advertising such as outdoor squares, buildings, airports, railway stations, bus stations, high-speed railway stations and so on.
The Apexls KPS Series outdoor LED display wall is designed for high-visibility advertising in large open areas. It performs perfectly in public squares, building façades, airports, and transportation hubs, delivering clear visuals even under direct sunlight. This display offers outstanding brightness and durability for long-term outdoor operation.

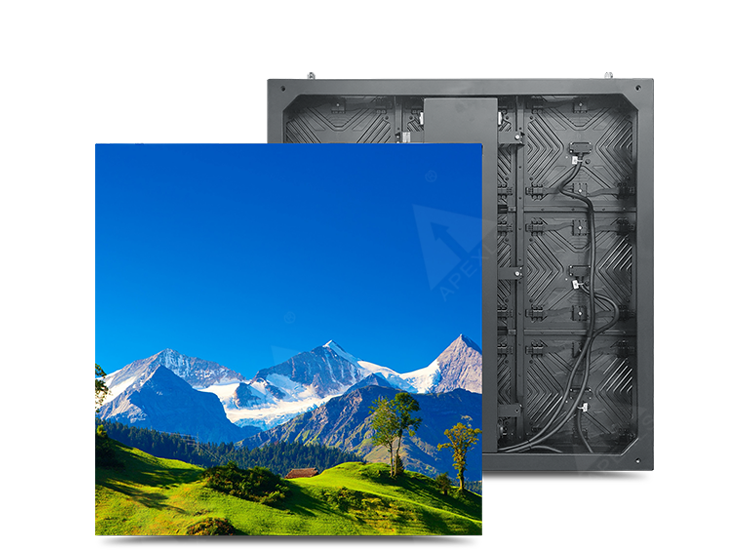

Our outdoor LED display wall features a customizable cabinet size to suit various installation environments. The flexible structure allows seamless integration into existing spaces, meeting different project needs from small retail promotions to large-scale digital billboards. Apexls ensures every detail matches your exact display vision.

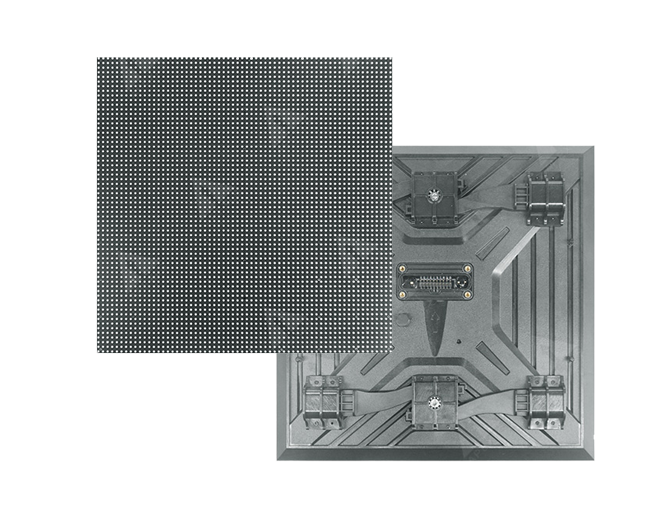

To withstand challenging outdoor conditions, the KPS Series adopts a fully enclosed module shell design. Each display is equipped with waterproof plugs and sealing technology, achieving excellent IP-rated protection. This ensures consistent performance of your outdoor LED display wall even in heavy rain or humidity.

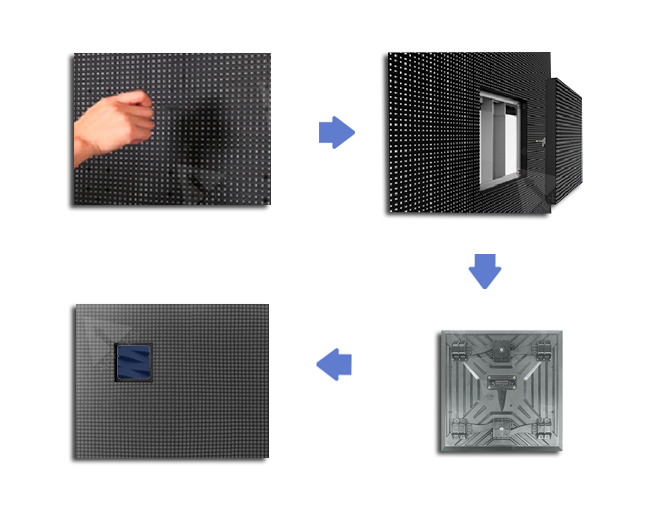

The KPS Series supports front maintenance with a fast-lock design, making servicing quick and easy. This smart structure reduces downtime and minimizes labor costs, allowing operators to manage their outdoor LED display wall more efficiently without removing the entire setup.
With a cabinet thickness of only 95mm and a weight of about 40kg per square meter, this outdoor LED display wall combines strength with portability. The sleek design makes installation faster while maintaining excellent heat dissipation and stability, ideal for both temporary and permanent outdoor installations.
| Model | P2.976 | P3.91 | P4.81 | P5.2 | P6.67 | P8 | P10 |
| Pixel Pitch(mm) | 2.976 | 3.91 | 4.81 | 5.2 | 6.67 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density(dots/m²) | 112,896 | 65,536 | 43,264 | 36,869 | 22,477 | 15,625 | 10,000 |
| Cabinet Size(mm) | 1,000×1,000 | 1,000×1,000 | 1,000×1,000 | 1,000×1,000 | 960×960 | 960×960 | 960×960 |
| Cabinet Resolution(dots) | 336×336 | 256×256 | 208×208 | 192×192 | 144×144 | 120×120 | 96×96 |
| Module Size(mm) | 250×250 | 250×250 | 250×250 | 250×250 | 320×320 | 320×320 | 320×320 |
| Module Resolution(dots) | 84×84 | 64×64 | 52×52 | 48×48 | 48×48 | 40×40 | 32×32 |
| Cabinet Material | Aluminum / Iron | Aluminum / Iron | |||||
| Cabinet Weight(kg) | Around 32 kg/m² (Iron) ; Around 23 kg/m² (Aluminum) | Around 32 kg/m² (Iron) ; Around 23 kg/m² (Aluminum) | |||||
| Brightness(cd/c) | 5,000 | 6,000 | 5,000 | 5,500 | 6,000 | 5,500 | 6,000 |
| Power Avg.(W/m²) | 350 | 300 | 280 | 280 | 300 | 300 | 300 |
| Power Max.(W/m²) | 1050 | 900 | 800 | 800 | 700 | 700 | 700 |
| Refresh Rate(Hz) | 1920~3840 | ||||||
| Gray Scale(bit) | 12 ~ 16 | ||||||
| Installation/Maintenance | Front / Rear | ||||||
| Certification | CE ETL FCC RoHS | ||||||
