light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P1.5, P1.9, P2.6, P2.9, P3.9
Cabinet Size(mm): 500×500,500X1000
The KD-D Series Outdoor Rental LED Display from Apexls represents a new generation of rental screen technology. Built with a lightweight frame and modular structure, it ensures quick installation and simple maintenance. The flexible 500x500mm and 500x1000mm cabinet options allow seamless configurations for different stage applications. This outdoor rental LED display is designed to meet the high demands of professional event environments.

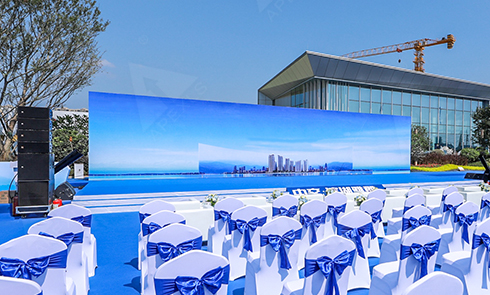

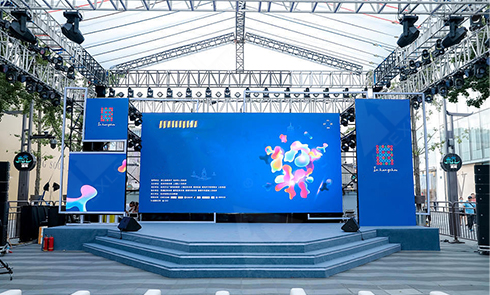

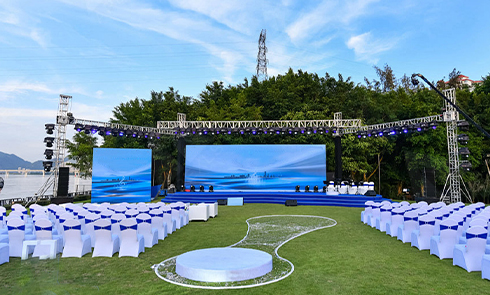

This outdoor rental LED display is widely used in concerts, TV shows, exhibitions, and entertainment events. Its high brightness and weather-resistant features ensure excellent visibility, even in challenging outdoor conditions. Whether at commercial exhibitions, conferences, or live performances, the KD-D Series delivers reliable visual performance for every occasion.
With a cabinet thickness of only 87mm, this outdoor rental LED display combines lightweight construction with high strength. The advanced hardware backup enhances reliability, ensuring uninterrupted performance. Its slim yet durable design makes it easy to transport, install, and dismantle, reducing operational costs for event organizers.
The KD-D Series outdoor rental LED display supports creative splicing to form curved shapes, both concave and convex. This unique design flexibility helps create immersive visual effects that capture audience attention. From raised arcs to recessed configurations, the display adapts to different stage concepts and enhances overall presentation impact.
Beyond curved designs, the KD-D Series outdoor rental LED display can also be spliced into right-angled shapes. This feature is ideal for exhibitions, event venues, and commercial showcases where content needs to be displayed across multiple viewing angles. It provides event planners with the freedom to design visually striking displays that stand out in competitive environments.
IP65 waterproof rating to withstand harsh weather cendlitions.
Module front and rear service, Suitable for various installation environments, improve work efficiency.Anti-knock design, compatible for floor LED tile screen usage.
Module corner protection effectively protects the module from bumps.
Quick installation, quick locking on both sides, easy to install. High strength fast lock design, durable, and fast disassemble & disassemble.
With high brightness and clarity, it can provide clear visual effects in various environments, even displaying excellent results outdoors or in bright environments.
The refresh rate is optional at 3840/7680, with a grayscale of up to 16 bits, which can display image details and color levels, presenting stunning visual effects.
LED rental screens can be assembled into screens of different sizes and shapes according to needs, adapting to various venues and requirements, and providing customized display solutions.
KD series support hoisting and stacking, it also provides the installation solution of the easy frame to help customers save labor costs and material costs.
| Operating environment | Indoor | Outdoor | ||||||
| Model | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 | P2.6 | P2.97 | P3.91 |
| Pixel pitch(mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 |
| Pixel density(dots/m²) | 409,600 | 262174 | 147475 | 112896 | 65536 | 147475 | 112896 | 65536 |
| Scanning Method | 1/40 | 1/32 | 1/24 | 1/21 | 1/16 | 1/24 | 1/21 | 1/16 |
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution (dots) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 96X96 | 84×84 | 64×64 |
| Cabinet size(mm) | 500X500/500X1000(87mm thickness) | 500X500/500X1000(87mm thickness) | ||||||
| Cabinet weight(kg/m²) | 7/12.5 | 7/12.5 | ||||||
| Cabinet material | Die-casting aluminium | Die-casting aluminium | ||||||
| Maintenance Mode | Front/Rear | Front/Rear | ||||||
| Brightness(cd/m²) | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 4700 | 5800 | 2400 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Gray Scale(bit) | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Ave. Power(W/m²) | 164 | 150 | 150 | 150 | 150 | 267 | 267 | 267 |
| Max. Power(W/m²) | 410 | 410 | 410 | 410 | 410 | 800 | 800 | 800 |
