Size Customization
360 view angle
Model(mm): P4.8，P5，P6 ，P8 ，P10
Diameter(m)：2，2.5，3，4，5，6，8，11

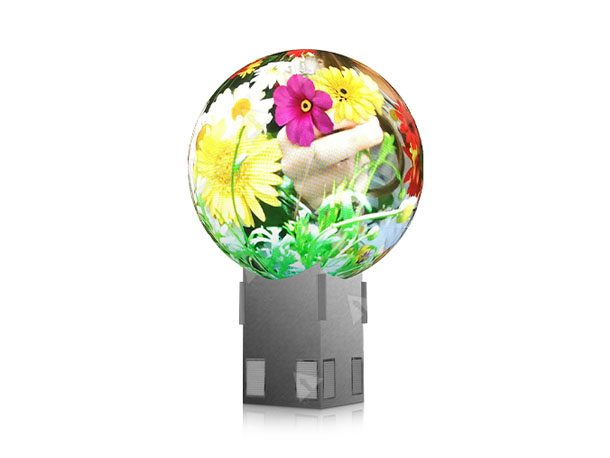

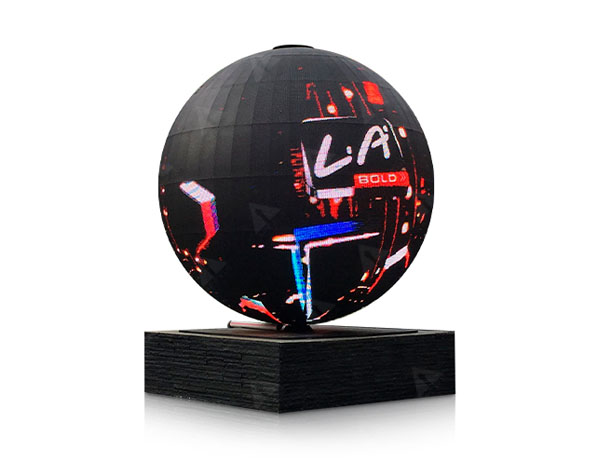

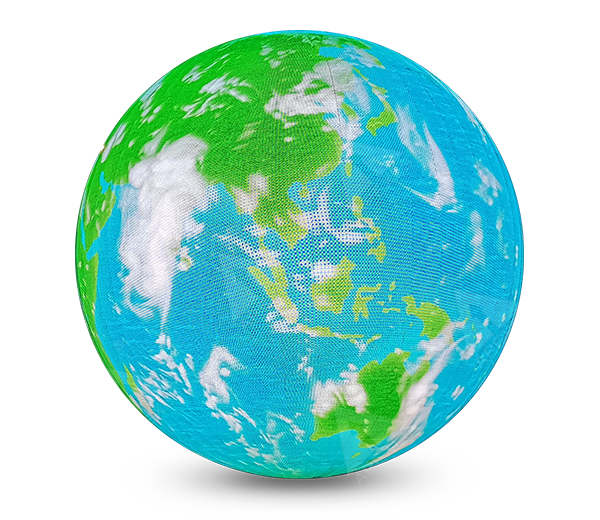

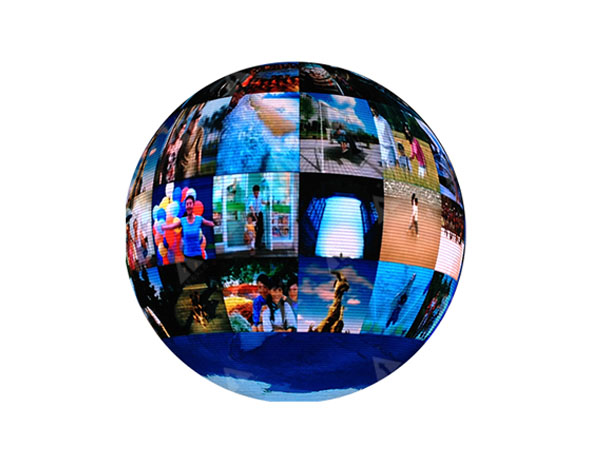

The Outdoor KSO Series outdoor LED sphere display offers complete customization, including diameter, model, resolution, and display effects. Designed with patented technology, this innovative product ensures smooth visual performance on a perfectly curved surface. Its cutting-edge LED modules create seamless 360-degree images, making it an eye-catching centerpiece for any location. Built with premium materials and superior engineering, the KSO Series guarantees durability and long-term stability even in challenging outdoor environments.

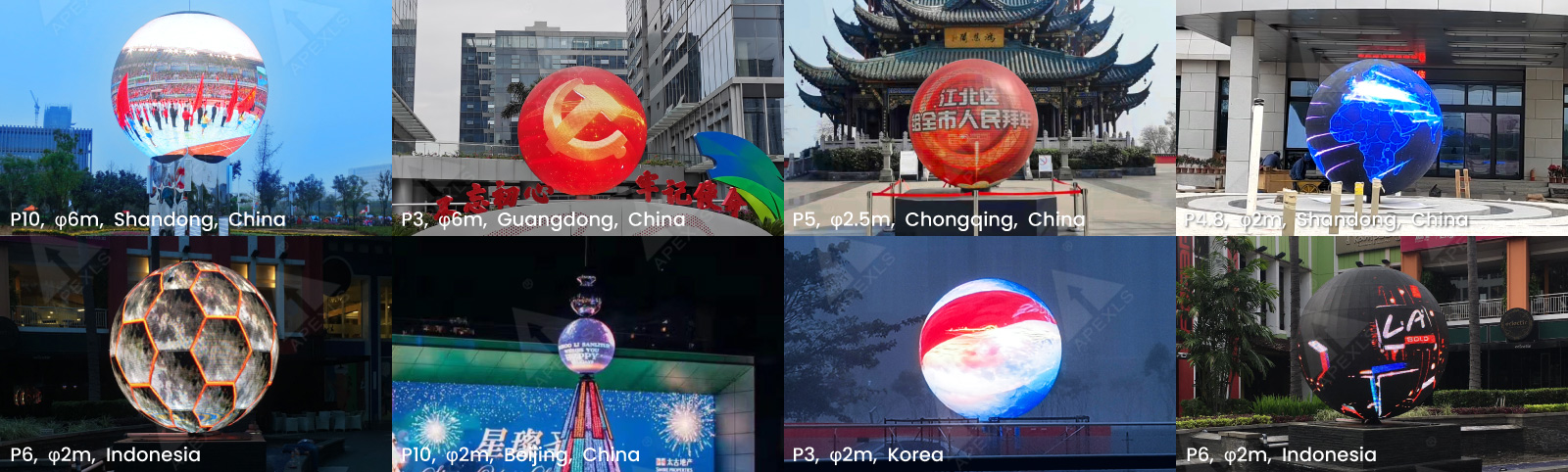

The KSO Series is widely used in museums, planetariums, science centers, exhibition halls, stadiums, hotels, railway stations, and large open-air venues. It also enhances the ambiance of shopping malls, airports, bars, and entertainment zones. Whether used for advertising, interactive displays, or artistic installations, these outdoor LED sphere displays transform ordinary spaces into immersive visual experiences.

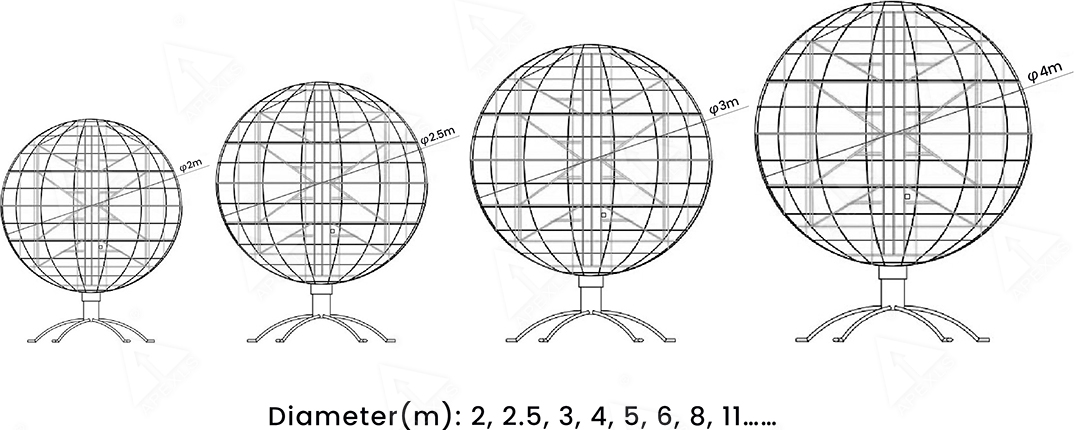

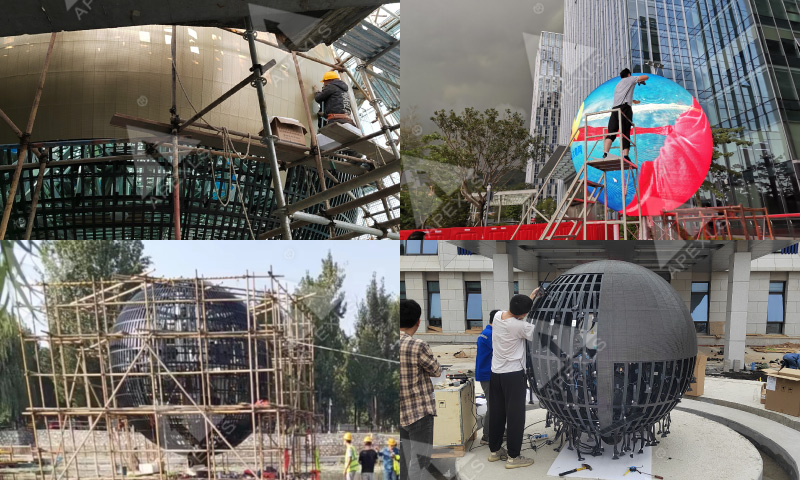

According to the design plan, make the steel structure for the shell of the spherical screen. The shell is usually made of metal material and has characteristics such as waterproof, dustproof, and earthquake resistance.
Install the LED module onto the surface of the casing steel structure and connect it to the power supply and control system. Then debug to ensure the normal operation and display effect of the LED spherical screen.
Ensure lighting for 72 hours
Install the assembled spherical screen in the designated position and perform debugging. Debugging includes adjusting parameters such as brightness, color, and display effects to ensure the normal operation of the spherical screen.
First one design in led screen industry , get new record for shenzhen enterprises.
Max diameter 17m and other 16.3m 14m 1lm 8m7.2m 6m 5m

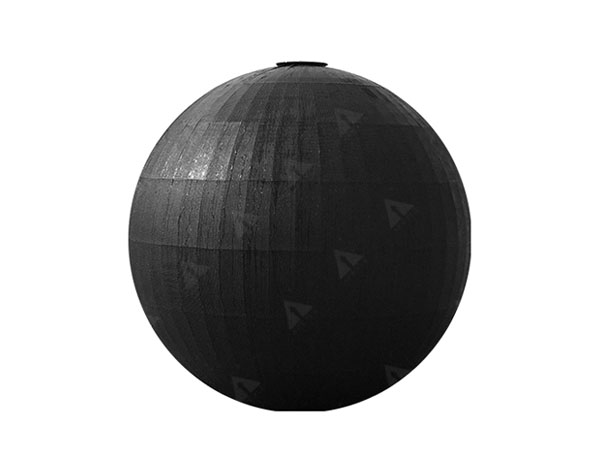

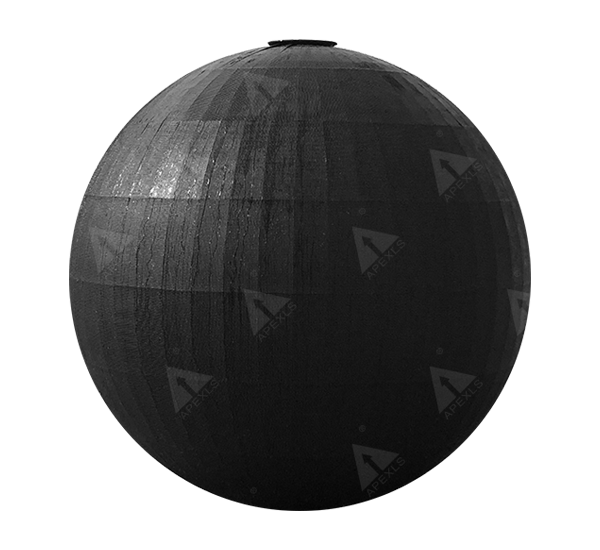

Not lighting up is also a beautiful sight

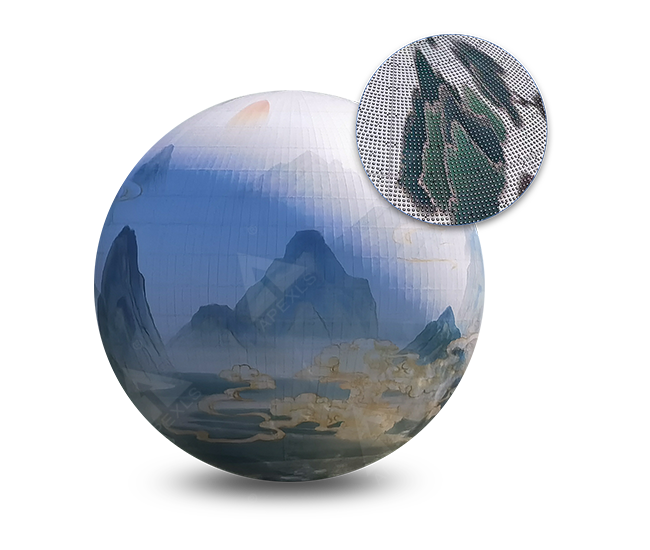

Customizable pixel pitch and diameter
High impact visual, good eye-catching
High qualitu LED beads, high brush IC, power supply
Customized PCB design with seamless splicing, tolerance 0.2mm
Waterproof, moisture-proof, dust-proof, sun-proof, cold-resistant
| Outdoor | |||||
| Model | P4.8 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4.8 | 5 | 6 | 8 | 10 |
| Diameter(m) | 2, 4 | 2.5 | 2，3 | 5 | 2，6，8,11 |
| LED Type | SMD1515 | SMD1515 | SMD1921 | SMD2727 | SMD3535 |
| Pixel Density(dots/m2) | 43402 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/m2) | 5000 | 5000 | 5000 | 5000 | 7500 |
| Avg Power Consumption(W/m2) | 400 | 400 | 350 | 260 | 450 |
| Max Power Consumption(W/m2) | 1000 | 1000 | 800 | 650 | 1100 |
| Refresh Rate(Hz) | 1,920-3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
