light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P1.9, P2.6, P2.9, P3.9, P4.8
Cabinet Size(mm): 500×500,500X1000

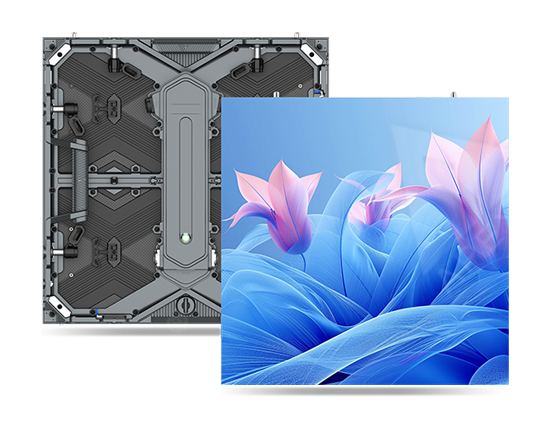

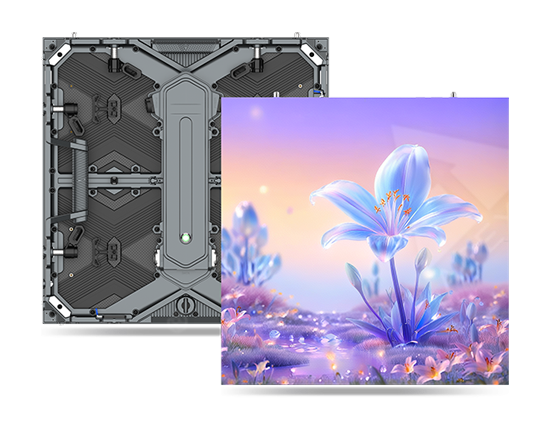

The Apexls KG Series rental LED display screens are designed for professional stage and event applications. With a lightweight structure and modular controller, PSU, and LED modules, these panels ensure fast installation, easy maintenance, and reliable performance for long-term use.
Our rental LED display screens are widely used in concerts, TV shows, exhibitions, theaters, and large-scale entertainment events. With flexible cabinet sizes (500x500mm and 500x1000mm), the panels can adapt to different indoor rental display needs and deliver excellent visual performance.
Initial technology of Hard Glue Processing.Single led lamp thrust value of 10.61kg for outdoor products. Initial technology of Coating Technology,Single led lamp thrust value of 5.11kg for indoor products.

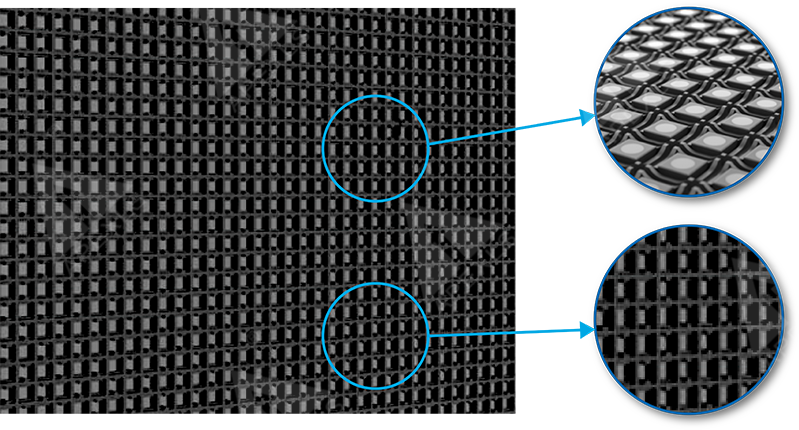

Initiate bump-textured mask design toprevent scratches or damages to the LED surface.

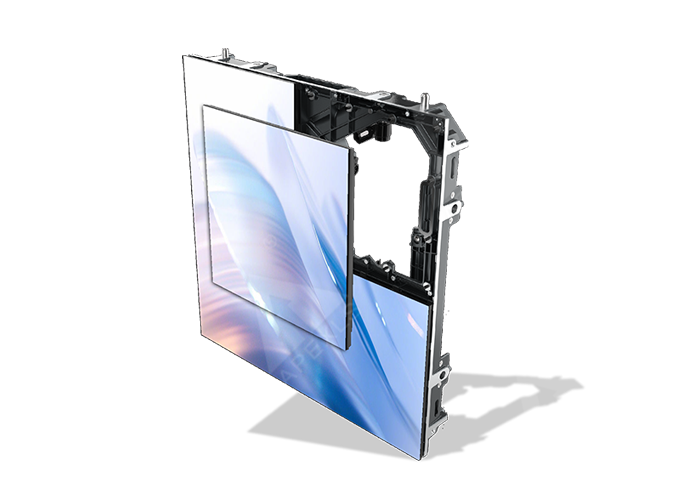

The module without distinction between top, bottom, left, or right.
Cabinet compatible with indoor and outdoor modules.
Cabinet compatible with modules of different pixel pitch.

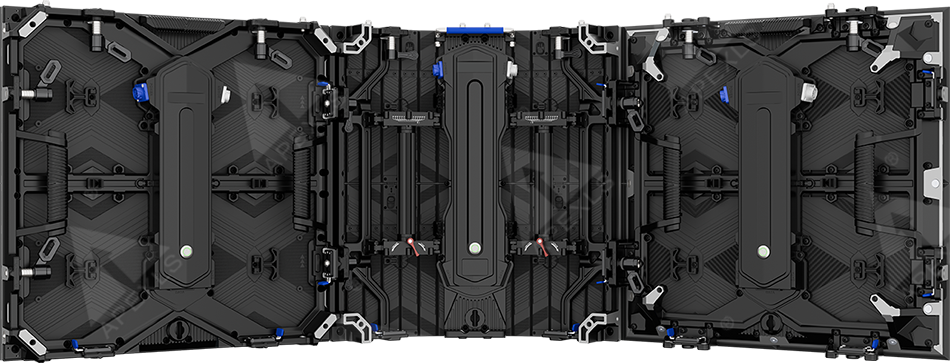

Conventional cabinet, cutting angle cabinet, and curved cabinet
can be spliced together.

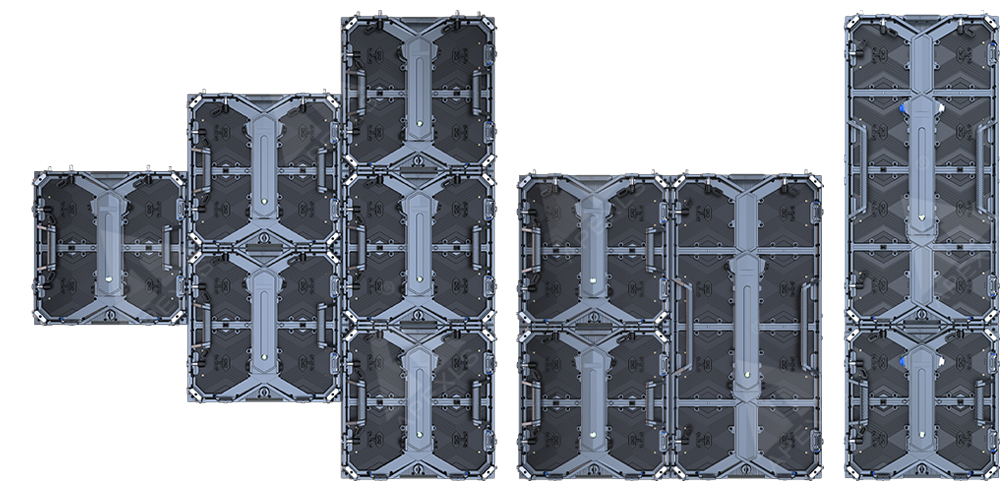

Large & Small Splicing: Left & Right. Up & Down.

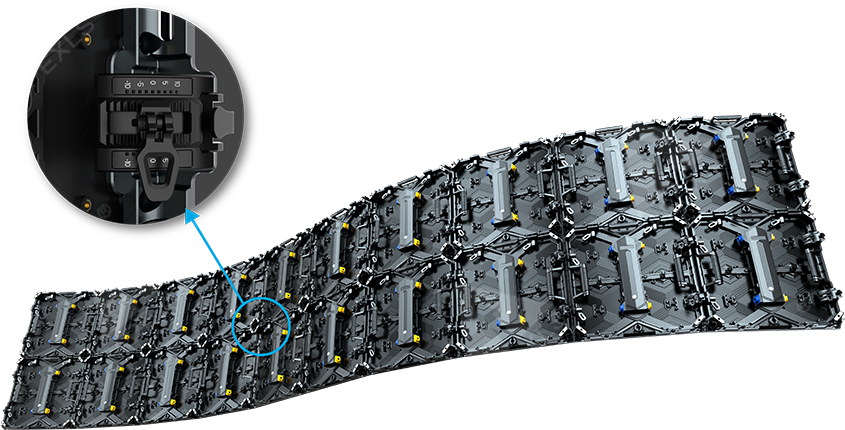

Integratable: Curve Lock Design.
Support: -7.5°~ +10°.
Scale: 2.5°.

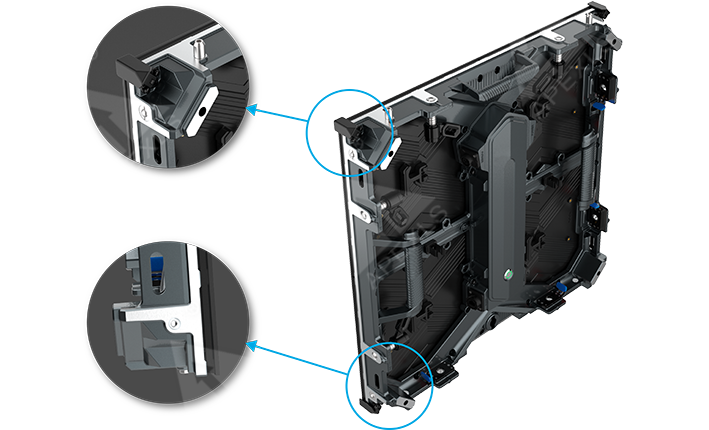

Pop-up corner protection design. Adjustable screw column.When places the cabinet on the ground, prevent the bottom led panel surface from touching the ground.
All-in-one: HUB & PSU.
Only PSU: HUB Integrated with Cabinet.

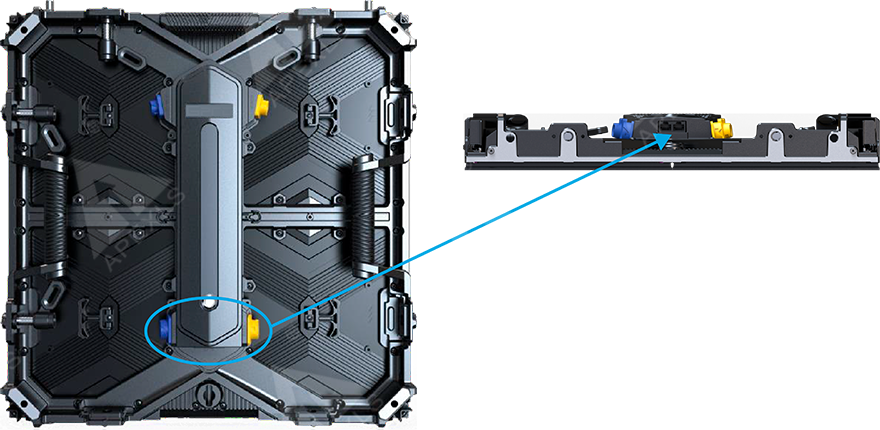

Diameter ≥10cm, More space between signal socket and the bottom, More efficiency for insertion & removal.

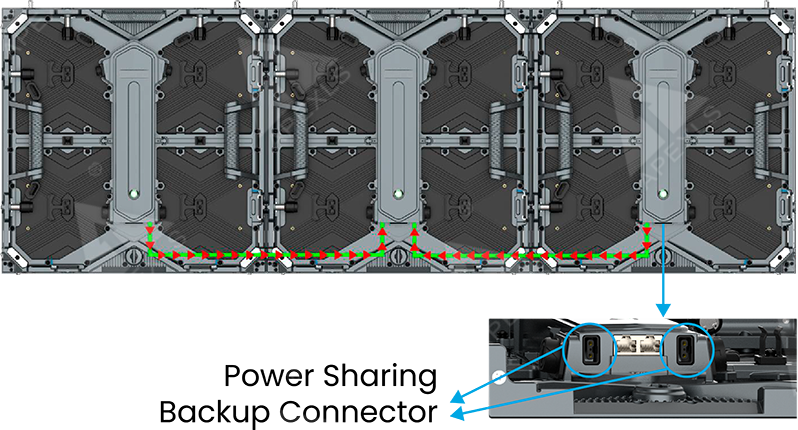

Initiate introduction of power sharing backup, ensure the screen never black out.
90 ° Right-angle, Creative Cube, Cylinder Display.
Support hanging and stacking installation,help customers save laborcosts and material costs.
| Operating environment | Indoor | Outdoor | |||||
| Model | P1.95 | P2.6 | P2.97 | P3.91 | P2.97 | P3.91 | P4.81 |
| Pixel pitch(mm) | 1.953 | 2.604 | 2.976 | 3.91 | 2.976 | 3.91 | 4.81 |
| LED type | SMD1212 | SMD1212 | SMD1515 | SMD2121 | SMD1415 | SMD1921 | SMD1921 |
| Pixel density (dots/m²) | 262,144 | 147,456 | 112,896 | 65,536 | 112,896 | 65,536 | 43,263 |
| Scan mode | 1/32 | 1/24 | 1/21 | 1/16 | 1/21 | 1/16 | 1/13 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution(dots) | 128×128 | 96×96 | 84×84 | 64×64 | 84×84 | 64×64 | 52×52 |
| Cabinet size(mm) | 500X500x69 | 500X500x69 500X1000x69 | 500X500x70 / 500X1000x70 | ||||
| Cabinet weight(kg/pc) | 6.2/11.2 | 6.5/11.8 | |||||
| Cabinet material | Die-casting Aluminum | Die-casting Aluminum | |||||
| Service | Rear Maintenance | Rear Maintenance | |||||
| Brightness(cd/m²) | 600-800 | 3500-3800 | |||||
| Refresh rate (Hz) | 3840-7680 | 3840-7680 | |||||
| Gray scale (bit) | 14-16 | 14-16 | |||||
| Avg. Power(W/m²) | 180 | 250 | |||||
| Max. Power(W/m²) | 580 | 720 | |||||
| Protection Rating | IP30 | Front: IP65; Rear: IP54 | |||||
| Radian | -7.5°~+10° | -7.5°~+10° | |||||
| Viewing angle(°) | 160°/160° | 160°/160° | |||||
| Contrast | 6000:1 | 3000:1 | |||||
| Life time(hours) | 100,000 | 100,000 | |||||
| Operating temperature(℃) | -10℃~+45℃ | -10℃~+45℃ | |||||
| Operating humidity(RH) | 10~80%RH | 10~80%RH | |||||
