light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P2.6
Cabinet Size(mm): 500×500

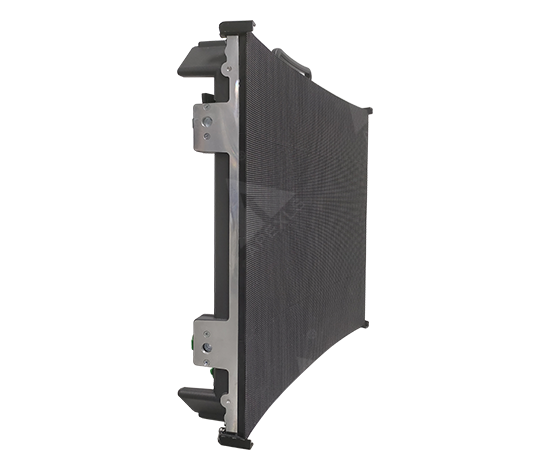

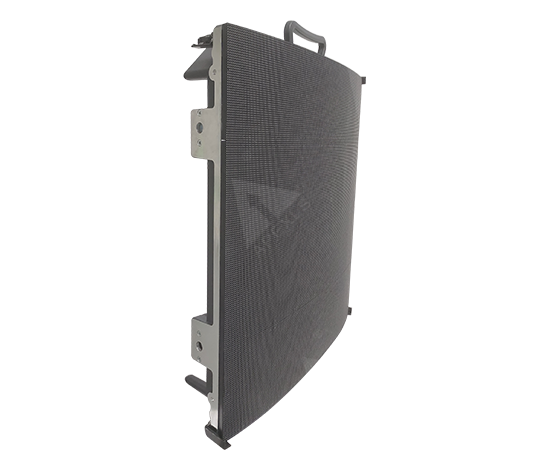

KD serial is a new generation of Apexls Rental Led Display, It adopts the concept of lightweight design, modular design of controller, module and PSUs, For easy installation and Maintenance. 500x500mm small cabinet has high flexibility, convenient to create all kinds of stage applications.

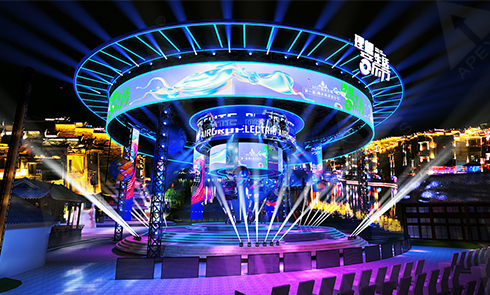

Widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, and other venues.

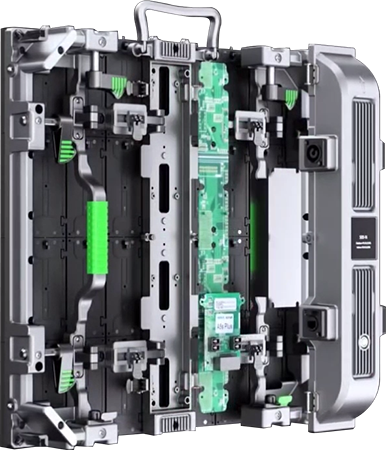

Module rear service, Suitable for various installation environments, improve work efficiency.

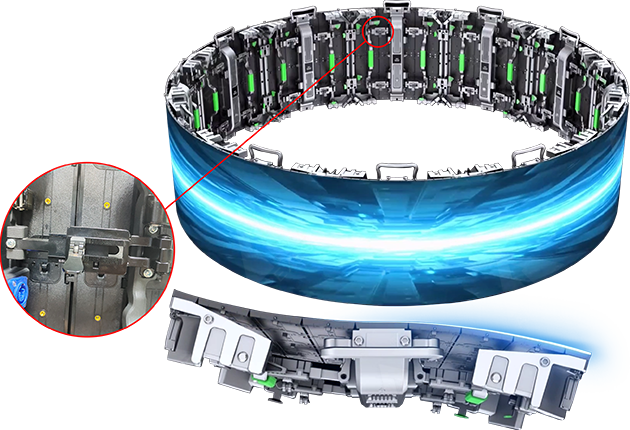

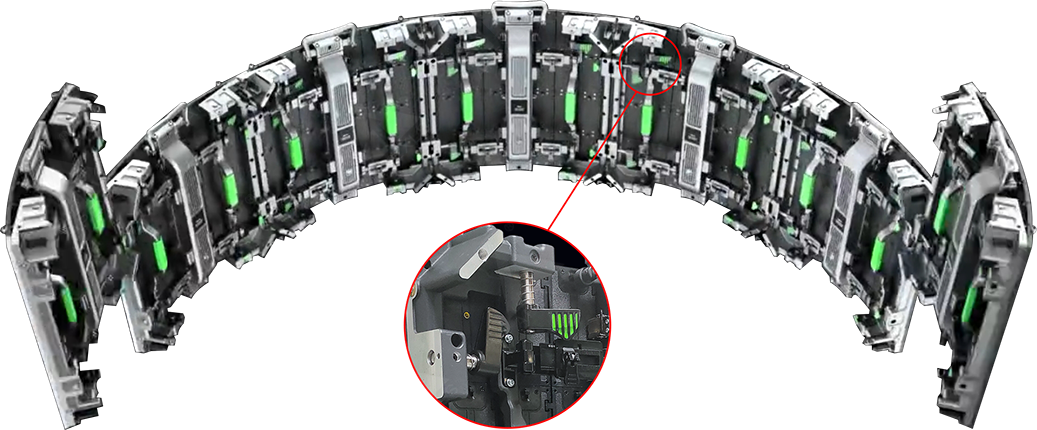

Enable the display screen to present a variety of shapes, including raised or recessed arcs, to attract the audience’s attention and provide a unique visual experience.
Module corner protection effectively protects the module from bumps.
Quick installation, quick locking on both sides, easy to install. High strength fast lock design, durable, and fast disassemble & disassemble.
With high brightness and clarity, it can provide clear visual effects in various environments, even displaying excellent results outdoors or in bright environments.
The refresh rate is optional at 3840/7680, with a grayscale of up to 16 bits, which can display image details and color levels, presenting stunning visual effects.
LED rental screens can be assembled into screens of different sizes and shapes according to needs, adapting to various venues and requirements, and providing customized display solutions.
KD series support hoisting and stacking, it also provides the installation solution of the easy frame to help customers save labor costs and material costs.
| Operating environment | Indoor |
| Model | P2.6 |
| Pixel pitch(mm) | 2.604 |
| Pixel density(dots/m²) | 147,456 |
| Scanning Method | 1/32 |
| LED type | SMD1515 |
| Module size (mm) | 250 x 250 |
| Module resolution (dots) | 96×96 |
| Cabinet size(mm) | 500X500x71.5 |
| Cabinet weight(kg) | 7 |
| Cabinet material | Die-casting aluminium |
| Maintenance Mode | Front |
| Brightness(cd/m²) | 600-800 |
| Refresh Rate (Hz) | 3840 |
| Gray Scale(bit) | 13-16 |
| Ave. Power(W/m²) | 220 |
| Max. Power(W/m²) | 560 |

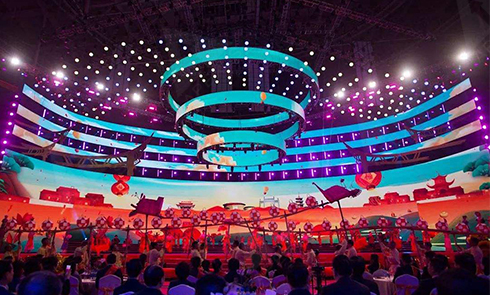

0
· Product: P2/P2.5/P3/P4
· Screen Size: 787.79 sqm
· Location: July 2023

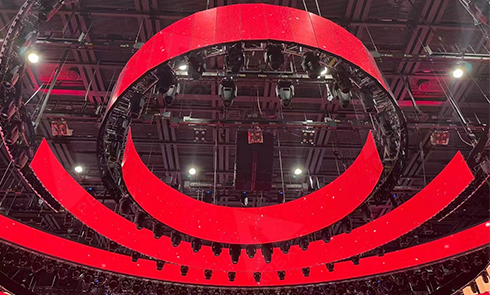

0
· Product: P1.875/P3
· Screen Size: 76 sqm
· Location: Shaoxing, China
0
· Product: P1.5
· Screen Size: 20.38 sqm
· Location: Shenzhen, China
