light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P1.5, P1.9, P2.6, P2.9, P3.9
Cabinet Size(mm): 500×500,500X1000
KD serial is a new generation of Apexls Rental Led Display, It adopts the concept of lightweight design, modular design of controller, module and PSUs, For easy installation and Maintenance. 500x500mm, 500x1000mm small cabinet has high flexibility, convenient to create all kinds of stage applications.

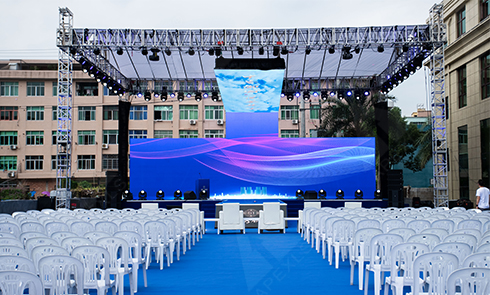

Widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, and other venues
Cabinet thickness: 87mm, Equipped with a “reliable” hardware backup.

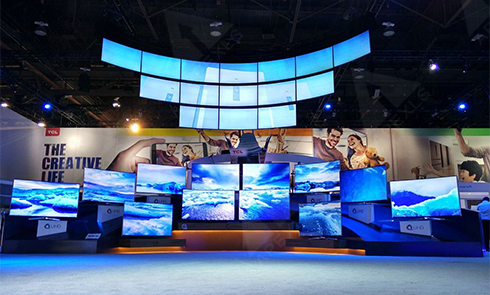

Enable the display screen to present a variety of shapes, including raised or recessed arcs, to attract the audience’s attention and provide a unique visual experience.

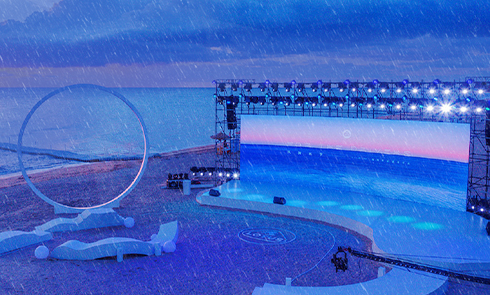

IP65 waterproof rating to withstand harsh weather cendlitions.
Module front and rear service, Suitable for various installation environments, improve work efficiency.Anti-knock design, compatible for floor LED tile screen usage.
Module corner protection effectively protects the module from bumps.
Quick installation, quick locking on both sides, easy to install. High strength fast lock design, durable, and fast disassemble & disassemble.
With high brightness and clarity, it can provide clear visual effects in various environments, even displaying excellent results outdoors or in bright environments.
The refresh rate is optional at 3840/7680, with a grayscale of up to 16 bits, which can display image details and color levels, presenting stunning visual effects.
LED rental screens can be assembled into screens of different sizes and shapes according to needs, adapting to various venues and requirements, and providing customized display solutions.
KD series support hoisting and stacking, it also provides the installation solution of the easy frame to help customers save labor costs and material costs.
| Operating environment | Indoor | Outdoor | ||||||
| Model | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 | P2.6 | P2.97 | P3.91 |
| Pixel pitch(mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 |
| Pixel density(dots/m²) | 409,600 | 262174 | 147475 | 112896 | 65536 | 147475 | 112896 | 65536 |
| Scanning Method | 1/40 | 1/32 | 1/24 | 1/21 | 1/16 | 1/24 | 1/21 | 1/16 |
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution (dots) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 96X96 | 84×84 | 64×64 |
| Cabinet size(mm) | 500X500/500X1000(87mm thickness) | 500X500/500X1000(87mm thickness) | ||||||
| Cabinet weight(kg/m²) | 7/12.5 | 7/12.5 | ||||||
| Cabinet material | Die-casting aluminium | Die-casting aluminium | ||||||
| Maintenance Mode | Front/Rear | Front/Rear | ||||||
| Brightness(cd/m²) | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 4700 | 5800 | 2400 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Gray Scale(bit) | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Ave. Power(W/m²) | 164 | 150 | 150 | 150 | 150 | 267 | 267 | 267 |
| Max. Power(W/m²) | 410 | 410 | 410 | 410 | 410 | 800 | 800 | 800 |
