Super Energy-saving

Outdoor LED Display

-KAH Series-

High Brightness

Home > Products > Outdoor LED Display > Outdoor KAH Series

Model(mm): P4，P6.67，P8，P10

Cabinet Size(mm): 960×960×90mm

Outdoor LED Display

The Outdoor KAH Series Dynamic Energy-saving High brightness LED display realizes ultra-slim & light-weight, super-bright but energy-saving, fast & seamless installation designs, brings vivid colors with excellent quality for the immersive entertainment & advertising industry.

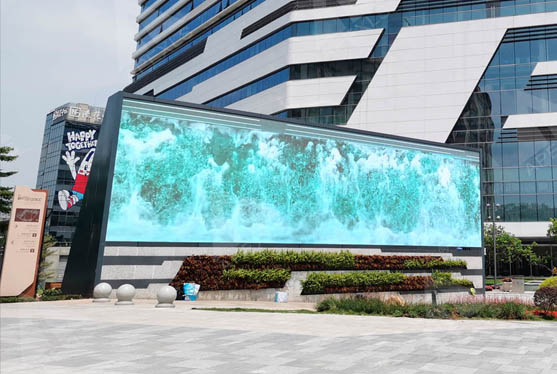

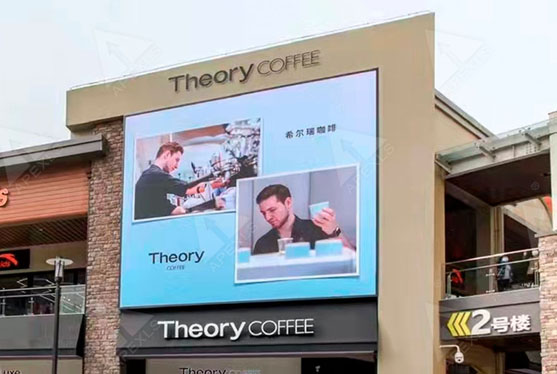

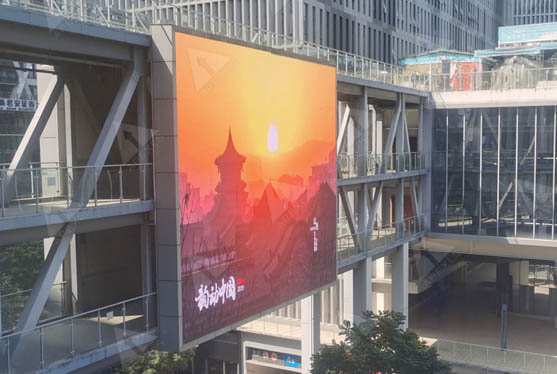

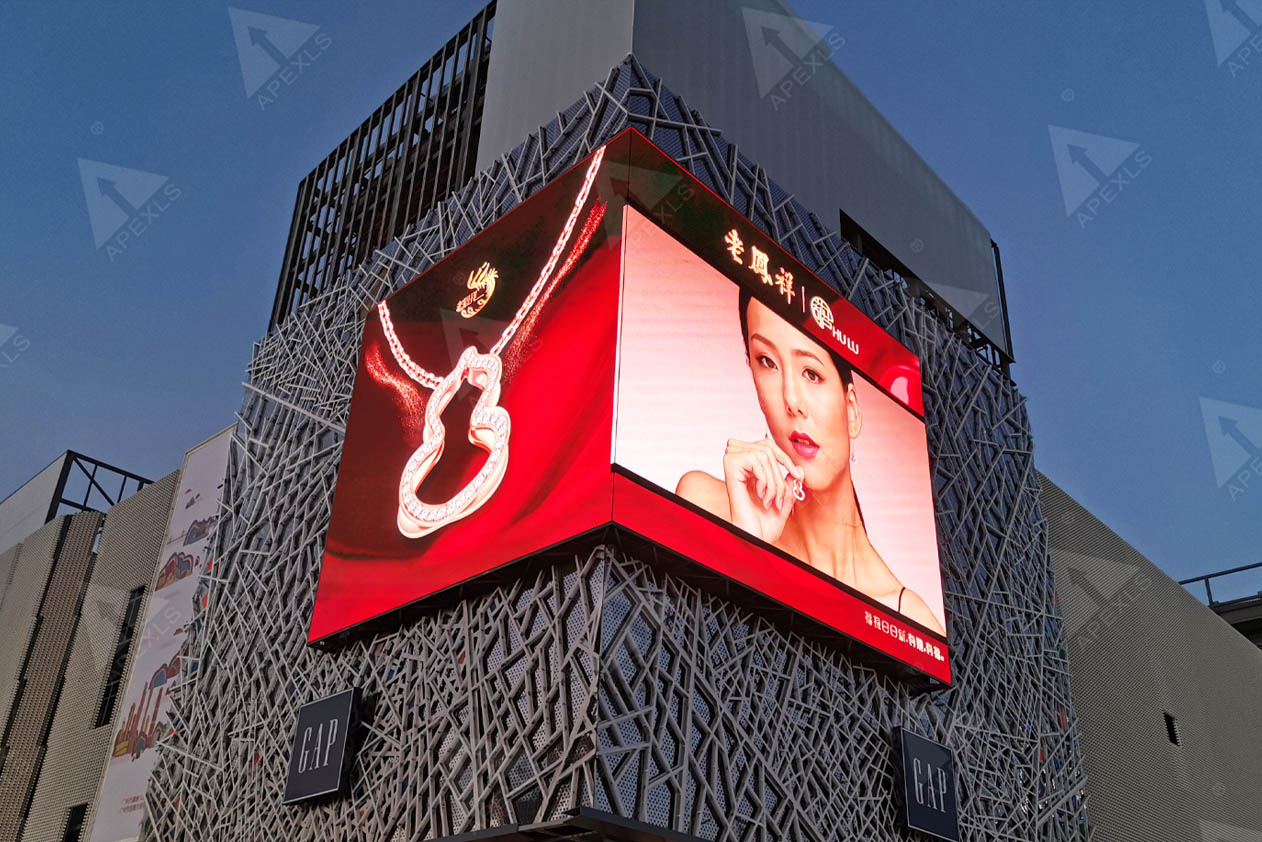

Main Applications

Application: Outdoor billboard, Shopping mall, Commercial complex, Parking area, Theme park, Sports stadium , Playground, Entertainment venue facade, etc.

High Brightness

Higher brightness & refresh rate & grayscale performance: 8000+nits brightness supports the display of gorgeous images under any lighting conditions without being restricted by the environment.

Super Energy-saving

The red light voltage is 1.9-2.2V, the green light voltage is 2.9-3.2V, and the blue light voltage is 2.9-3.2V. It adopts dual voltage output. Compared with other 5V inputs, the power consumption is significantly reduced by 30%.

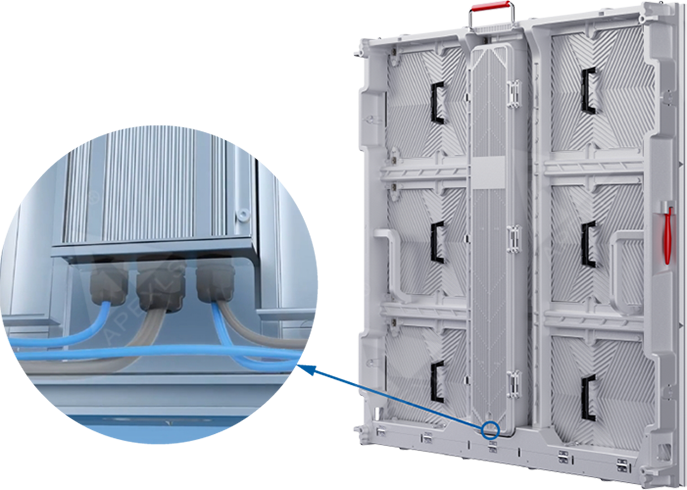

Exquisite Appearance

Standardized cabinet, excellent processing technology, simple & beautiful, bottom wire trough design to prevent wires from being damaged due to long-term exposure.

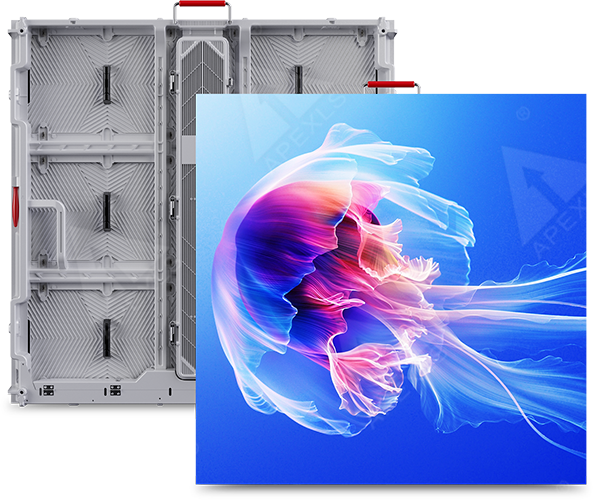

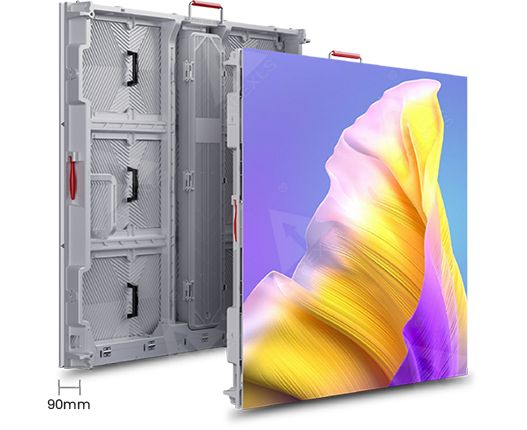

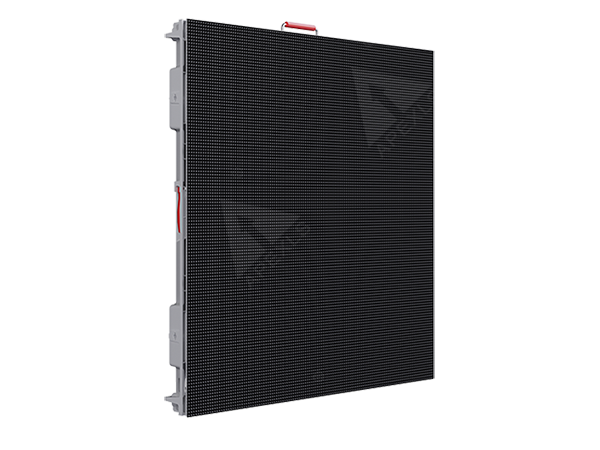

Ultra light and ultra-thin

Cabinet thickness: 90mm；

Cabinet size: 960x960mm；

Cabinet weight 27.5kg/pc.

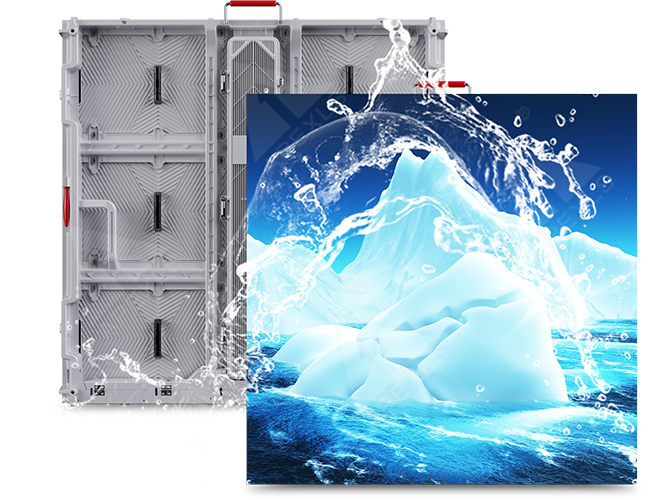

High Protection

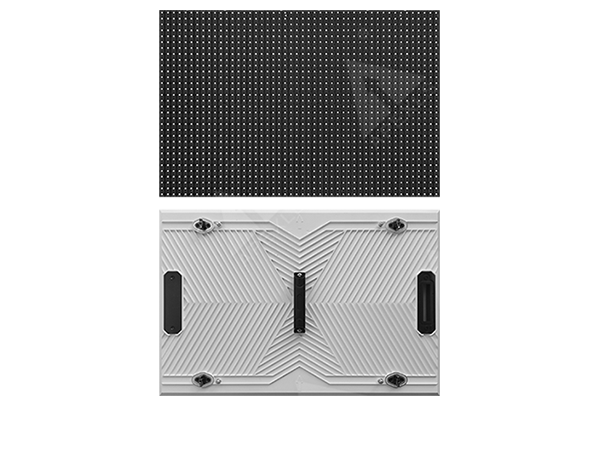

Die-casting fully enclosed module, die-casting fully enclosed power box, double-layer waterproof pin header rubber ring, high waterproof grade IP65+, high fire protection grade 5VB, EMC-Class B test certification.

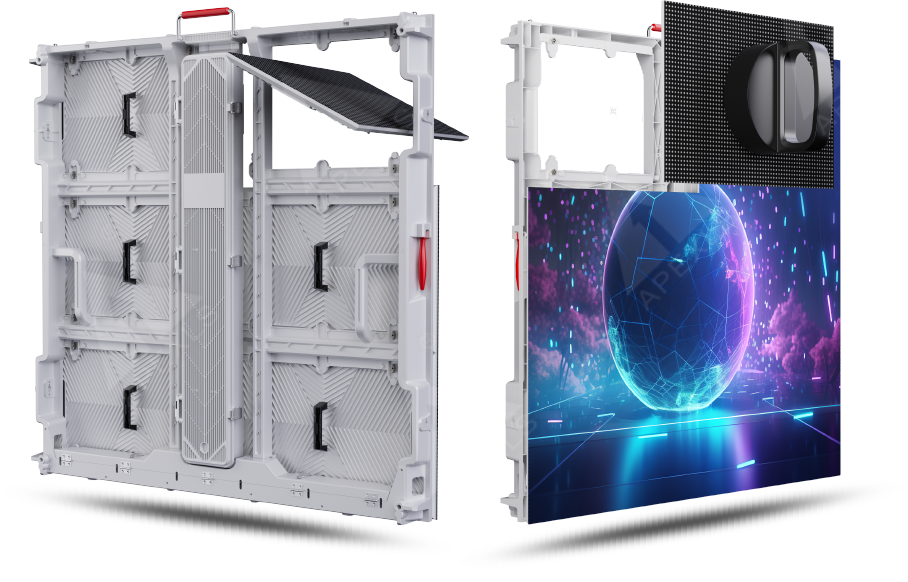

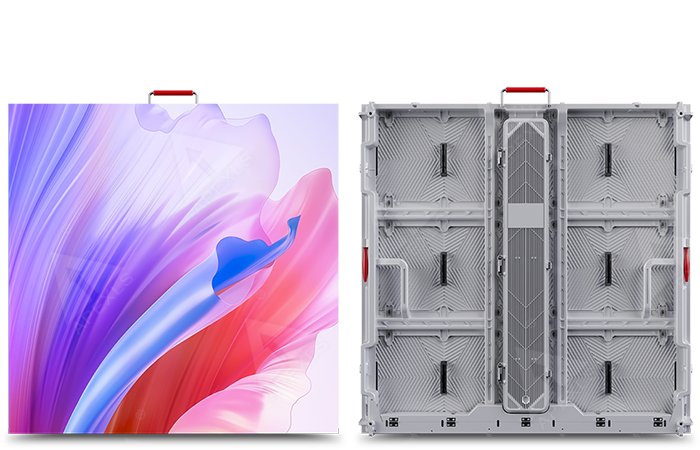

Front & Rear Maintenance

Both Modules & PSU’s Front-Rear service design can meet any project-site needs, and save some extra maintenance costs if any.

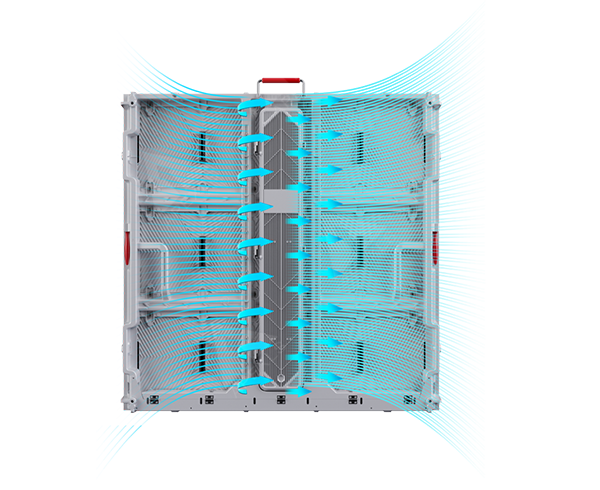

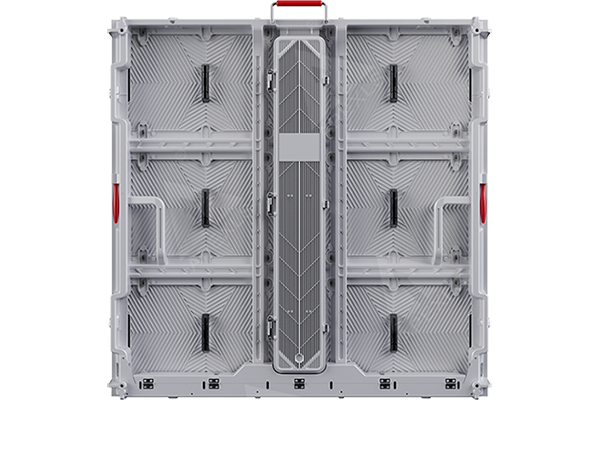

Excellent Heat-dissipation

Energy-saving design, low heat, die-cast aluminum cabinet & modular design can accelerate heat dissipation, power supply is close to the power box + thermal conductive silicone, the whole screen does not need air conditioning to dissipate heat.

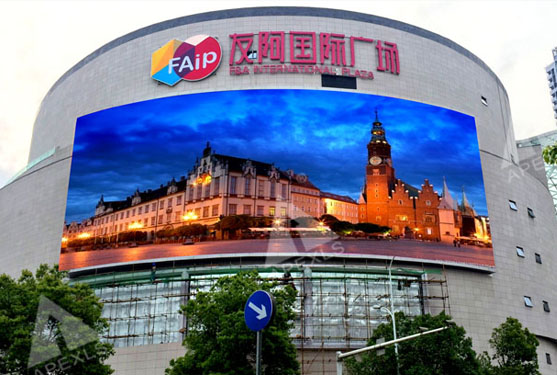

Curved Splicing

Curved splicing that fits the contour of the building can effectively reduce space waste and reduce installation costs. This design is not only beautiful, but also makes full use of space.

Parameters

Model	P4	P6.67	P8	P10
Pixel Pitch(mm)	4	6.67	8	10
Pixel Composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD1515	SMD1820	SMD1820	SMD2727
Pixel Density(dots/m²)	62,500	22,500	15,625	10,000
Module Size(mm)	480×320	480×320	480×320	480×320
Module Resolution(dots)	120×80	72×48	60×40	48×32
Cabinet Size(mm)	960x960x90	960x960x90	960x960x90	960x960x90
Cabinet Resolution(dots)	240×240	144×144	120×120	96×96
Cabinet Material	Die-casting aluminum
Cabinet weight(kg)	27.5	27.5	27.5	27.5
Brightness(cd/m²)	7,000	8,000	8,000	8,000
Power Avg.(W/m²)	180	140	138	135
Power Max.(W/m²)	595	595	595	595
Scan Rate	1/10	1/4	1/3	1/2
Refresh Rate(Hz)	3,840
Gray Scale(bit)	14-16
IP Grade	Front: IP65 & Rear: IP54
Installation/Maintenance	Front&Rear
Certification	CE, ETL, FCC, RoHS
