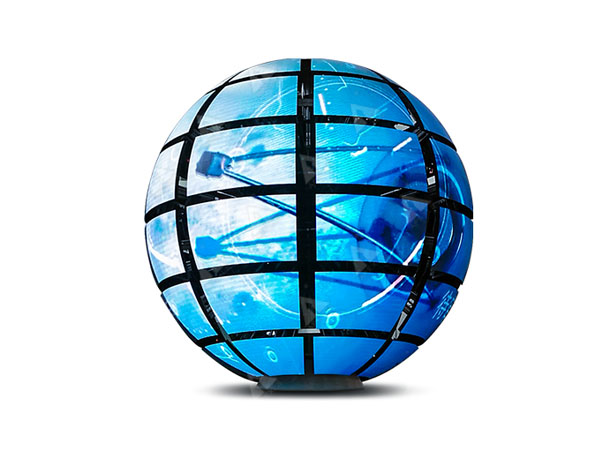

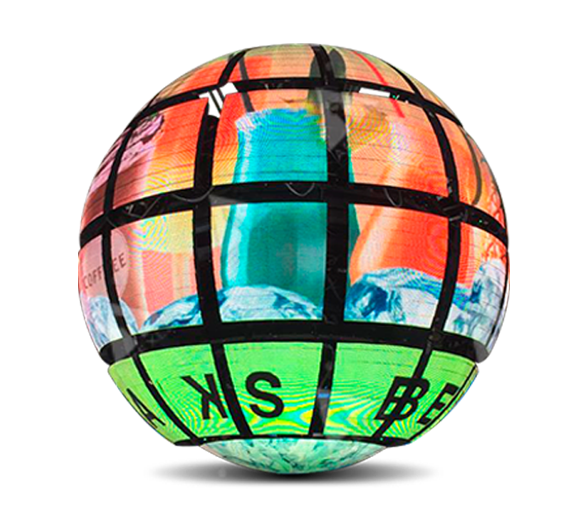

Multipartition scaling
360 view angle
Model(mm): P1.875，P2，P2.5 ，P3 ，P4

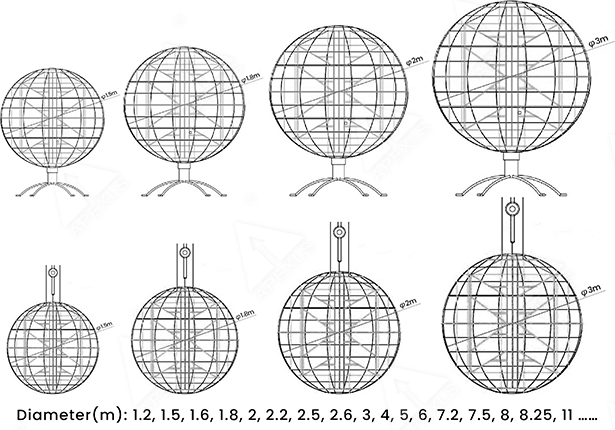

Diameter(m)：1.2，1.5，1.6，1.8，2，2.5，2.6，3，4，5
Unique appearance design, strong visual effect, Can be customized according to project needs. Seat-mounted, hanging, column-mounted are available It is an indispensable part of various halls and stages.
Railway stations，Airports，Large shopping malls，Concerts，Exhibition halls，Science，Museums，Planetarium，Children’s palace，Star hotels
According to the design plan, make the steel structure for the shell of the spherical screen. The shell is usually made of metal material and has characteristics such as waterproof, dustproof, and earthquake resistance.

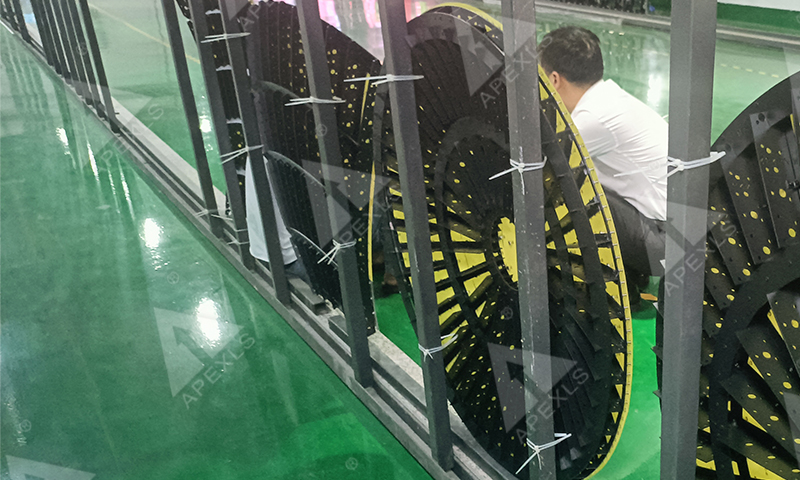

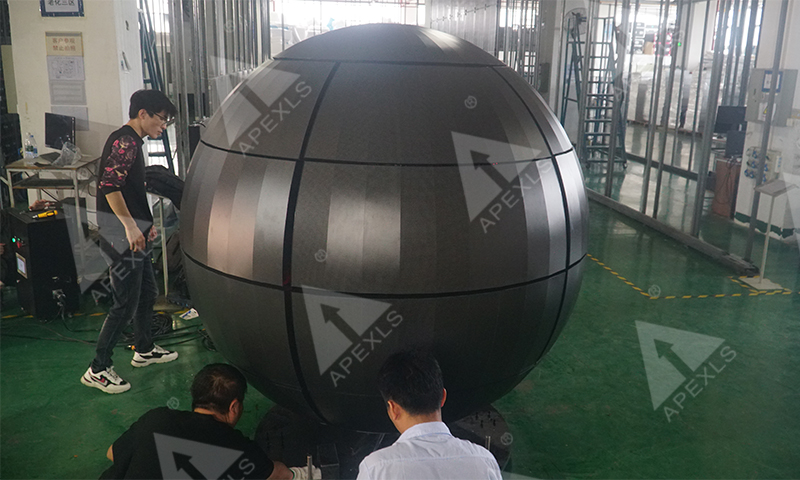

Install the LED module onto the surface of the casing steel structure and connect it to the power supply and control system. Then debug to ensure the normal operation and display effect of the LED spherical screen.

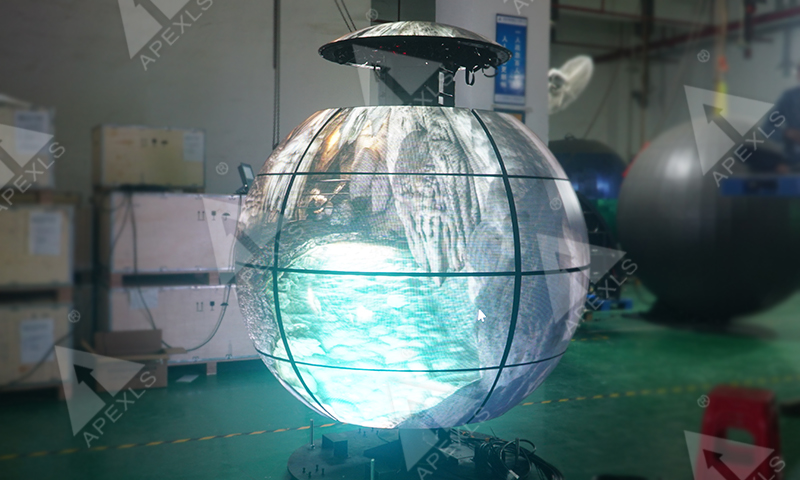

Ensure lighting for 72 hours

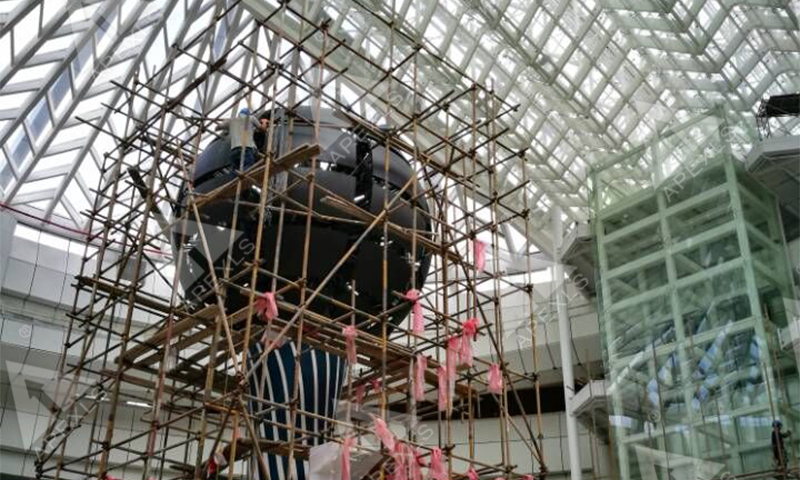

Install the assembled spherical screen in the designated position and perform debugging. Debugging includes adjusting parameters such as brightness, color, and display effects to ensure the normal operation of the spherical screen.

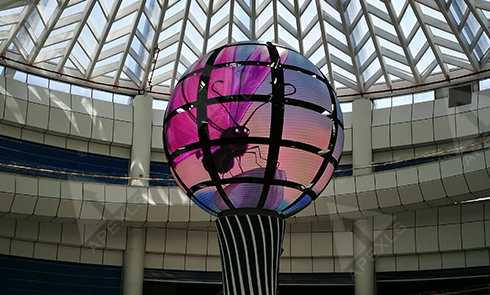

P4, φ2.5m, Zhejaing, China

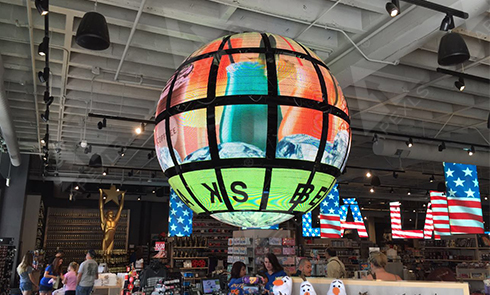

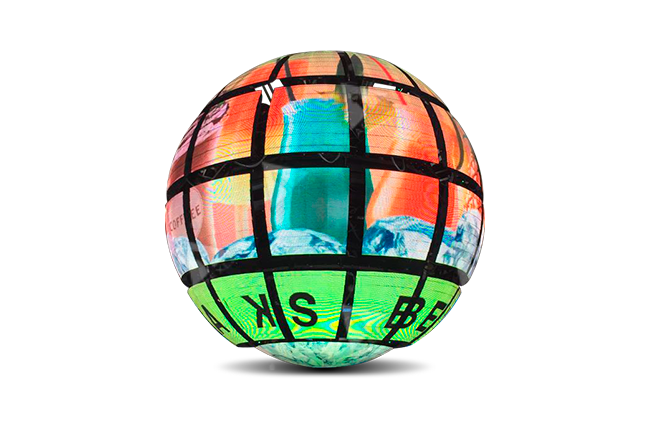

P5, φ2.5m, USA
P4, φ4m, Guizhou, China
High impact visual, good eye-catching.Both front maintenance and back maintenance are available
Hollow aluminum structural design ,Lightweight design, excellent heat dissipation

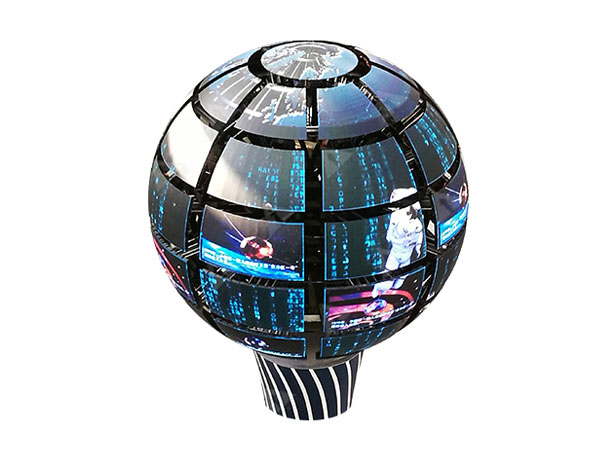

Unique and creative, special shape, more attractive audience

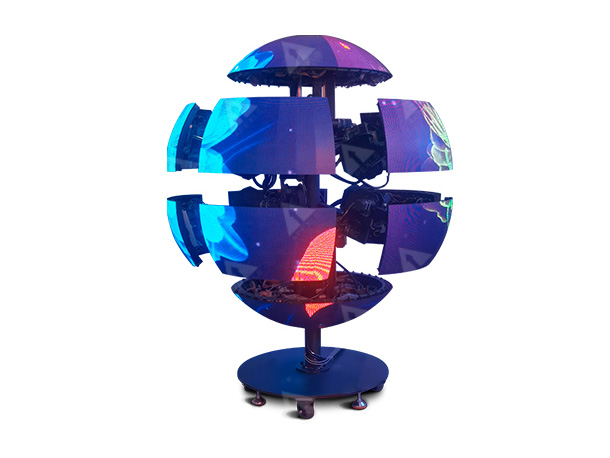

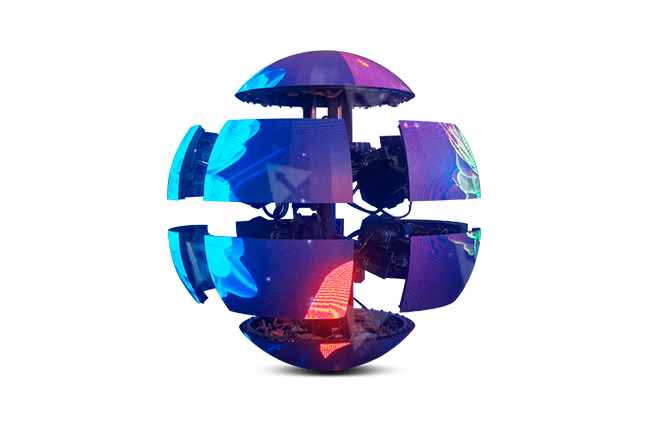

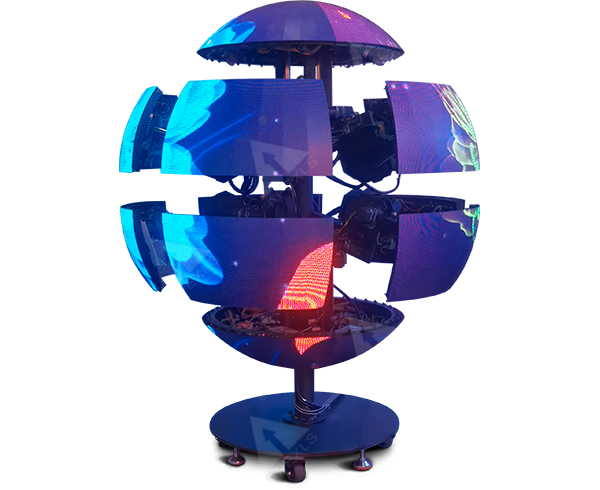

Less than 1.8m diameter it will be delivered as a whole balls. You don’t need to do assemble when you get it. Just power it on,then it will work. More than 1.8m diameter, it will be divided into several parts . You need to assemble it on site.
| Model | P1.8 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.875 | 2 | 2.5 | 3 | 4 |
| Diameter(m) | 1.5, 2.5 | 1.5, 1.6, 2 | 1.2, 1.5, 2 | 1.2, 1.5, 1.6 1.8, 2, 2.6, 3 | 1.5, 1.8 2.2, 2.5, 3, 4 5, 7.5, 8.25 |
| LED Type | SMD1212 | SMD1212/1515 | SMD1515 | SMD1515 | SMD2121 |
| Pixel Density(dots/m2) | 284445 | 250000 | 160000 | 111111 | 62500 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 1000 | 1200 |
| Avg Power Consumption(W/m2) | 160 | 160 | 150 | 150 | 150 |
| Max Power Consumption(W/m2) | 480 | 480 | 450 | 450 | 450 |
| Refresh Rate(Hz) | 1,920-3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
0

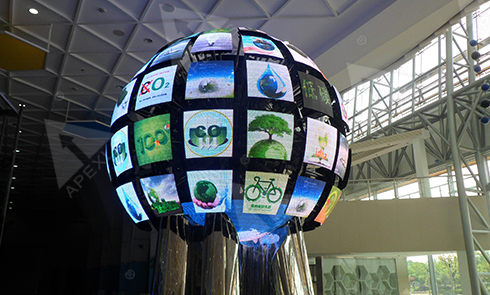

· Product: P4
· Screen Size: φ4m
· Location: Duyun, China
0
· Product: P4
· Screen Size: φ2.5m
· Location: Zhejiang, China
0

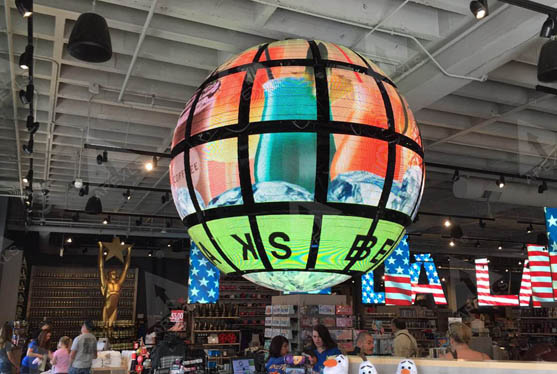

· Product: P5
· Screen Size: φ2.5m
· Location: Lala Land，USA
